Horizontal Air Cooler HVLS Ceiling Fan 24 Foot Industrial Ceiling Fan ODM

Product Details

Place of Origin: Chengdu,China

Brand Name: DAISEN

Model Number: DS/DX

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: wooden

Delivery Time: 5-8 work days

Payment Terms: T/T

Get Best Price
Contact Now
Specifications
Highlight:

Horizontal 24ft ceiling fan

,

Air Cooler HVLS Ceiling Fan

,

24 foot industrial ceiling fan ODM

Certification:
RoHS, ISO, CE
Specification:
Diameter Size From 6.0 Meters
Material:
Aluminum Fan
Type:
Centrifugal Fan
Electric Current Type:
AC
Mounting:
Ceiling Fan
Transport Package:
Wooden Package
Customization:
Available | Customized Request
Certification:
RoHS, ISO, CE
Specification:
Diameter Size From 6.0 Meters
Material:
Aluminum Fan
Type:
Centrifugal Fan
Electric Current Type:
AC
Mounting:
Ceiling Fan
Transport Package:
Wooden Package
Customization:
Available | Customized Request
Description
Horizontal Air Cooler HVLS Ceiling Fan 24 Foot Industrial Ceiling Fan ODM
1.5kw Cooling Air Cooler Hvls Industrial Ceiling Fan with Permanent Magnet Electric Motor for Factory



Daisen HVLS Industrial Ceiling Fan

Daisen Technology Chengdu Co., Ltd, based in Longquan Economic Development Zone, Chengdu, China, the company is based on the HVAC industry, focusing on the research of products in the field of high space HVAC, not only to provide customers with safe, reliable, high-performance products, but also to provide professional,customized HVAC solutions according to the different needs of customers.

The company has a strong technical force product development and production team and a united and rigorous marketing team. At present, the company is in the process of rapid growth, not only in the Chinese provinces to set up offices, and began to engage in foreign trade business, now exported to countries such as: Honduras, Belarus, Nigeria, South Africa region, the United States, Singapore, etc. Our products have been all over the world, providing high-quality and competitive prices for factories around the ventilation equipment.

1.5kw Cooling Air Cooler Hvls Industrial Ceiling Fan with Permanent Magnet Electric Motor for Factory Public Place 1.5kw Cooling Air Cooler Hvls Industrial Ceiling Fan with Permanent Magnet Electric Motor for Factory Public Place1.5kw Cooling Air Cooler Hvls Industrial Ceiling Fan with Permanent Magnet Electric Motor for Factory Public Place

The company's independently developed HVLS industrial fans have been widely used in military, aerospace, automobile manufacturing, Chinese car manufacturing, equipment manufacturing, general apparatus, food processing, logistics and transportation, home manufacturing, indoor dome, large breeding and other industries, not only in industrial places, including schools, churches and other places are also applicable.At the same time, according to customer demand, our company can also do private customization on the basis of the original fan, such as additional lighting, equipped with temperature control equipment, etc.

1.5kw Cooling Air Cooler Hvls Industrial Ceiling Fan with Permanent Magnet Electric Motor for Factory Public Place1.5kw Cooling Air Cooler Hvls Industrial Ceiling Fan with Permanent Magnet Electric Motor for Factory Public Place1.5kw Cooling Air Cooler Hvls Industrial Ceiling Fan with Permanent Magnet Electric Motor for Factory Public Place

Daisen PRODUCT SERIES

Series Model Numbers of the blades Voltage Power Diameter Drive mode Max speed Max air volume Max coverage area(m²) Fit for installation height(m) Noise level Net weight
DS
(Gearbox motor)
DS-7.3 6 220V/380V 1.5KW 7.3M (24FT) Gearbox motor drive 50RPM 888000m3/h 1200 7~18 ≤60db 156kg
DS-6.7 6 220V/380V 1.5KW 6.7M (22FT) Gearbox motor drive 52RPM 822000m3/h 1000 6~15 ≤60db 152kg
DS-6.1 6 220V/380V 1.5KW 6.1M (20FT) Gearbox motor drive 55RPM 774000m3/h 800 6~13 ≤60db 147kg
DS-5.5 6 220V/380V 1.5KW 5.5M (18FT) Gearbox motor drive 60RPM 732000m3/h 600 5~11 ≤60db 143kg
DS-5.0 6 220V/380V 1.5KW 5.0M (16FT) Gearbox motor drive 65RPM 690000m3/h 450 5~9 ≤60db 140kg
DX
(PMSM motor)
DX-7.3 6 220V 1.5KW 7.3M (24FT)  brushless direct drive 50RPM 888000m3/h 1200 7~18 ≤38db 106kg
DX-6.7 6 220V 1.2KW 6.7M (22FT)  brushless direct drive 55RPM 822000m3/h 1000 6~15 ≤38db 100kg
DX-6.1 6 220V 1.0KW 6.1M (20FT)  brushless direct drive 60RPM 774000m3/h 800 6~13 ≤38db 94kg
DX-5.5 6 220V 0.75KW 5.5M (18FT)  brushless direct drive 65RPM 732000m3/h 600 5~11 ≤38db 72kg
DX-5.0 6 220V 0.7KW 5.0M (16FT)  brushless direct drive 68RPM 690000m3/h 450 5~9 ≤38db 68kg
DX-4.2 5 220V 0.6KW 4.2M (14FT)  brushless direct drive 75RPM 636000m3/h 300 4~7 ≤38db 64kg
DX-3.6 5 220V 0.3KW 3.6M (12FT)  brushless direct drive 90RPM 393600m3/h 250 4~6 ≤45db 42kg
DX-3.0 5 220V 0.2KW 3.0M (10FT)  brushless direct drive 100RPM 331800m3/h 200 4~5 ≤45db 38kg
DX-2.4 5 220V 0.15KW 2.4M (8FT)  brushless direct drive 100RPM 273000m3/h 200 4~5 ≤45db 34kg

1.5kw Cooling Air Cooler Hvls Industrial Ceiling Fan with Permanent Magnet Electric Motor for Factory Public Place
DX series (PMSM motor)

High air volume up to 888000m³/h,fan diameter is 7.3m, 6 pieces of fan blade, 6063T6,running speed 5-55RPM(poleless frequency converter control),net weight 106kg,air speed 1-4m/s; coverage area up to 1200m2(10m installation height).nominated poweris 1.5KW,Noise value is less than 38dB.

DS series (gearbox motor)

High air volume up to 888000m³/h,fan diameter is 7.3m, 6 pieces of fan blade,6063 T6 heat treated,running speed 20-55RPM(poleless frequency converter control),net weight 126kg,air speed 1-3m/s; coverage area up to1200m2(13m installation height).nominated poweris 1.5KW,actually tested average power is 1.2KW. Noise value less than 60dB.

1.5kw Cooling Air Cooler Hvls Industrial Ceiling Fan with Permanent Magnet Electric Motor for Factory Public Place

Comparison of three refrigeration methods in 1000 square meter plant

Refrigeration mode Quantity Power/unit Tall power General comparison
Central air conditioner 1 80KW 80KW The walls and doors and windows of the plant are required to be insulated. The cost of one-time investment of the equipment is high, and the maintenance cost of replacing the filter element and adding refrigerant is high
Traditional industrial fan 40 0.3KW 12KW The installation of traditional wall fans is limited by walls and columns. The power lines of floor fans are scattered, which has potential safety hazards. It is not safe for the hair of staff members to be mixed into the fan blades, which occupies a small space and covers a short service life
7.3M HLVS industrial ceiling fan 1 1.5KW 1.5KW Large coverage area, long service life, low maintenance cost, installation does not occupy the workshop space, safety and environmental protection


The energy consumption of large industrial ceiling fan is about 1 / 50 of that of central air conditioner and 1 / 10 of that of traditional industrial wall fan

Application space of product

The technology of industrial large fans originated from the United States, and it is the most direct and effective solution to the problem of ventilation and cooling in tall spaces. Localization has been widely used in various industries.

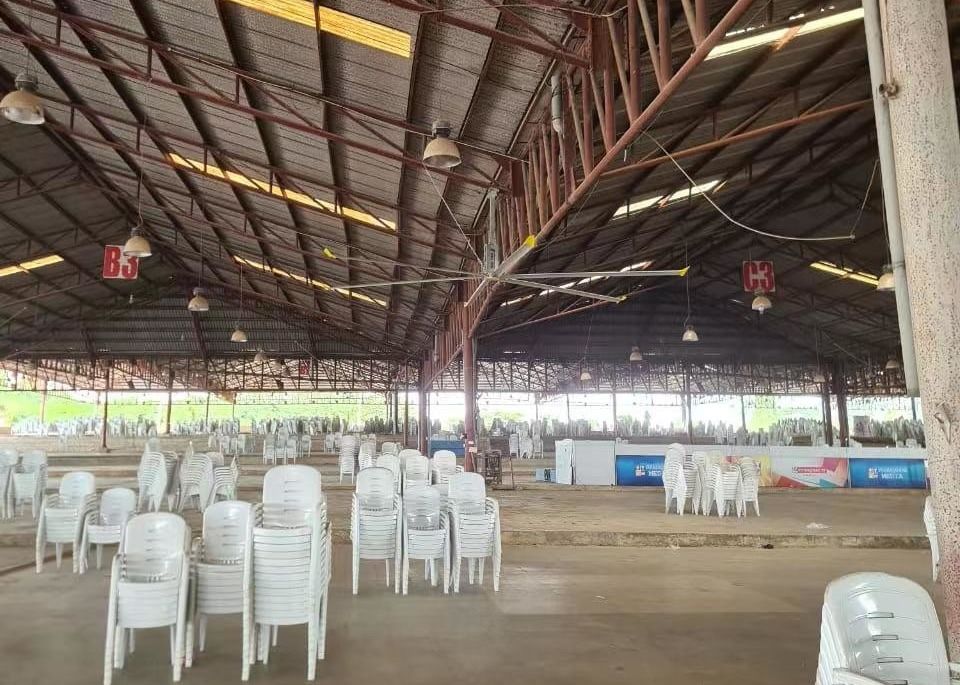

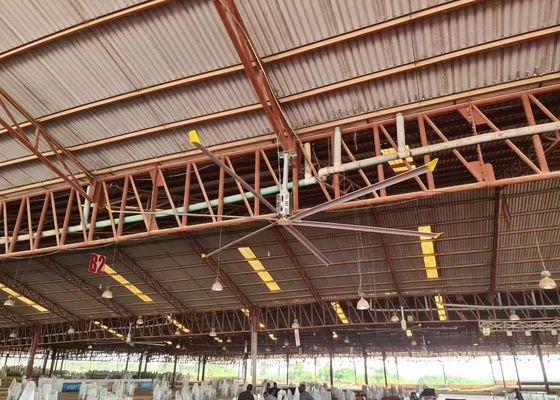

At present, DAISEN industrial large fans are widely used in: 4-20m high processing plants, warehousing and logistics, indoor sports stadiums, gyms, station shopping malls, breeding and other places.


1.5kw Cooling Air Cooler Hvls Industrial Ceiling Fan with Permanent Magnet Electric Motor for Factory Public Place1.5kw Cooling Air Cooler Hvls Industrial Ceiling Fan with Permanent Magnet Electric Motor for Factory Public Place1.5kw Cooling Air Cooler Hvls Industrial Ceiling Fan with Permanent Magnet Electric Motor for Factory Public Place
