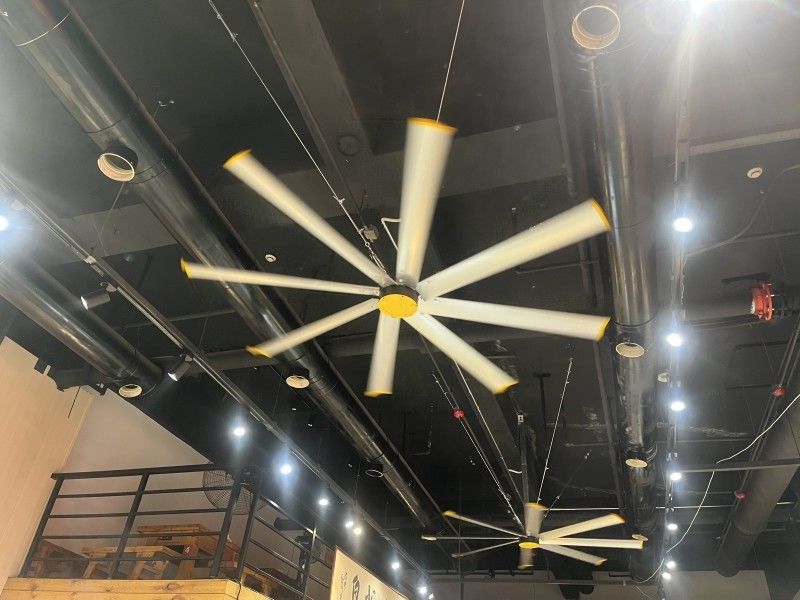

8Ft Giant Ventilation Cooling Exhaust Air Cooler Fan For Food Industry
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Specification||Diameter 7.3 Meter||Origin||China|
|HS Code||8414591000||Port||Shenzhen, China|
|Transport Package||Wooden||Material||Aluminum Fan|
|Blade Material||Aluminum||Type||Exhaust Fan|
|Electric Current Type||AC||Mounting||Ceiling Fan|
|Certification||RoHS, ISO, UL, CE, SGS|
8Ft Exhaust Air Cooler Fan,
UL Exhaust Air Cooler Fan,
Giant Ventilation HVLS Ceiling Fan
8Ft Giant Ventilation Cooling Exhaust Air Cooler Fan With High Volume Of Air Wind Applies To Food Industry
The wind blown from DAISEN industrial ceiling fan simulate natural breeze system,the wind speed is just the best cool feeling of human skin. Personnel can feel the temperature difference 5-8 degree, providing personnel so comfortable working environment in hot summer that improving the production efficiency.
Function of the fan:
The fan improve air exchange in an entire space, it's perfect streamlined design can produces 2-3m/s speed three-dimensional wind, and makes you feel like enjoying the natural breeze system.It promotes the dispersion of smoke, moisture, carbon dioxide and poor air with high specific gravity.So as to improve the quality of working area, create healthy, dry and safe working environment.
It is convenience to be operated, control system adopts the latest poleless frequency converter control system.Besides of convenience operation, the humanized operation interface also allows you enjoy the beauty of electronic and mechanic achieve the life.
Because it can produce large air volume, effectively promoting air circulation, the moisture is well dispersed, greatly reducing the probability of problems such as bedbugs, fungi and so on.
After complex surface treatment,the product can avoid the pain of period cleaning,the cost-performance ratio is the highest,the life of each fan can reach more than10 years.
4- energy saving
The rated power of the motor on the fan is 1.5KW,each fan can cover 1000 square meter working area,8 hours per day, is just 10 degree power energy consumption,compared to typical small fans and high power consumption air condition, large industrial ceiling fan can be called model of energy saving, can greatly reduce your operation cost.
Working principle :
Large ceiling fan is a series of products special developed for energy saving,working environment improvement. As we all know,refrigeration is not the only way to achieve the effect of cooling and comfort. The area of a fan could blow is determined by the diameter dimension of it, but has nothing to do with its speed.therefore, the industrial fan with large diameter and low speed combines all these characteristics .
After years deeply research and exploration,by integrating oversea advanced aeronautic technology,we Dai sen developed a kind of propeller blades with outstanding performance,it conforms continuous and silent breeze by slowly rotation.The large volume of airflow generated by its unique and high efficient blades push down,thus a nearly perfect propeller exhaust is constructed.
It pushes large volume of airflow to the ground,and constructed certain high level airflow moving horizontally,thus generates a overall air circulation.The advantage is overall ground coverage and three-dimensional circulation of air.
The speed of wind generated by"Large industrial ceiling fan"is about 1-3m/s,completely calculated according to the best feeling of cooling when the airflow pass through human skin.too strong airflow makes people feel irritable,a sense of being blown directly,too high speed of airflow also makes people dizzy,only the through the evaporation of skin combines of breeze speed,can beautifies people's feeling of cooling.
DAISEN PRODUCT CATALOG AS BELOW:
|Series||Model||Numbers of the blades||Voltage||Power||Diameter||Drive mode||Max speed||Max air volume||Max coverage area(m²)||Fit for installation height(m)||Noise level||Net weight|
|DS-7.3||6||220V/380V||1.5KW||7.3M (24FT)||Gearbox motor drive||50RPM||888000m3/h||1200||7~18||≤60db||156kg|
|DS-6.7||6||220V/380V||1.5KW||6.7M (22FT)||Gearbox motor drive||52RPM||822000m3/h||1000||6~15||≤60db||152kg|
|DS-6.1||6||220V/380V||1.5KW||6.1M (20FT)||Gearbox motor drive||55RPM||774000m3/h||800||6~13||≤60db||147kg|
|DS-5.5||6||220V/380V||1.5KW||5.5M (18FT)||Gearbox motor drive||60RPM||732000m3/h||600||5~11||≤60db||143kg|
|DS-5.0||6||220V/380V||1.5KW||5.0M (16FT)||Gearbox motor drive||65RPM||690000m3/h||450||5~9||≤60db||140kg|
|DX-7.3||6||220V||1.5KW||7.3M (24FT)||brushless direct drive||50RPM||888000m3/h||1200||7~18||≤38db||106kg|
|DX-6.7||6||220V||1.2KW||6.7M (22FT)||brushless direct drive||55RPM||822000m3/h||1000||6~15||≤38db||100kg|
|DX-6.1||6||220V||1.0KW||6.1M (20FT)||brushless direct drive||60RPM||774000m3/h||800||6~13||≤38db||94kg|
|DX-5.5||6||220V||0.75KW||5.5M (18FT)||brushless direct drive||65RPM||732000m3/h||600||5~11||≤38db||72kg|
|DX-5.0||6||220V||0.7KW||5.0M (16FT)||brushless direct drive||68RPM||690000m3/h||450||5~9||≤38db||68kg|
|DX-4.2||5||220V||0.6KW||4.2M (14FT)||brushless direct drive||75RPM||636000m3/h||300||4~7||≤38db||64kg|
|DX-3.6||5||220V||0.3KW||3.6M (12FT)||brushless direct drive||90RPM||393600m3/h||250||4~6||≤45db||42kg|
|DX-3.0||5||220V||0.2KW||3.0M (10FT)||brushless direct drive||100RPM||331800m3/h||200||4~5||≤45db||38kg|
|DX-2.4||5||220V||0.15KW||2.4M (8FT)||brushless direct drive||100RPM||273000m3/h||200||4~5||≤45db||34kg|
- DS SERIES FANS
- DX SERIES FANS
Key component configuration
•DS series adopts Taiwan/German gearbox motor
•DS series adopts the industry's first non carbon brush, large torque, DC drive motor, replacing the traditional motor speed reducer, realizing high integration, improving reliability and transmission efficiency
•DS series adopts Taiwan / Germany brand inverter stepless speed change (optional explosion-proof controller) to configure circuit breaker overcurrent overload protection, cooling fan and other components
•DX series fan adopts a special brush free controller
•The material of the fan blade adopts magnesium aluminum alloy T6 treatment, corrosion resistance, high strength, high toughness
•Advanced fluid simulation software CFD simulation and wind tunnel test, in line with aerodynamic anti fatigue;
•With the function of delay start, the load and impact of the motor are greatly reduced, and the service life is longer
•The structural parts are formed by Q235B laser, bending the stiffener structure, and the thickest part is 8mm.
•Alloy steel high strength bolts and anti-skid nuts are used for the bolts.
•Steel wire rope and turnbuckle tension structure to stabilize the fan against falling
• The integrated chassis can prevent the risk of fracture, the coupling anti falling structure can avoid screw defects, the chassis can be dropped, the hole arrangement design of plywood structure can prevent sliding, the adjustable structure is suitable for any installation conditions, and the arc-shaped adjustable waist hole can be adjusted to ensure the plane level of blade chassis
Comparison of three refrigeration methods in 1000 square meter plant
|Refrigeration mode||Quantity||Power/unit||Tall power||General comparison|
|Central air conditioner||1||80KW||80KW||The walls and doors and windows of the plant are required to be insulated. The cost of one-time investment of the equipment is high, and the maintenance cost of replacing the filter element and adding refrigerant is high|
|Traditional industrial fan||40||0.3KW||12KW||The installation of traditional wall fans is limited by walls and columns. The power lines of floor fans are scattered, which has potential safety hazards. It is not safe for the hair of staff members to be mixed into the fan blades, which occupies a small space and covers a short service life|
|7.3M large industrial ceiling fan||1||1.5KW||1.5KW||Large coverage area,Long service life, low maintenance cost, installation does not occupy the workshop space, more safety and protect the environment.|
The energy consumption of large industrial ceiling fan is about 1 / 50 of that of central air conditioner and 1 / 10 of that of traditional industrial wall fan or standing fan!
*Installation places: Any high enough structure of factory ,sport center,logistic place,car repair workshops,supermarket, airport,package workshop,animal breading industry,any kinds of hall,as well as fitness center etc.(The same applies to some catering industries)
*Iinstallation height: "DS" series products for 6 meters to 20 meters height.
"DX" series products for 3 meters to 6 meters height.
Customer application Cases
