Big Industrial Pmsm Hvls Ceiling Fan 7.3m For Air Cooling Ventilation

Name: Big Industrial Pmsm Hvls Ceiling Fan 7.3m For Air Cooling Ventilation
Brand: Big Industrial Pmsm Hvls Ceiling Fan 7.3m For Air Cooling Ventilation
SKU: Big Industrial Pmsm Hvls Ceiling Fan 7.3m For Air Cooling Ventilation
Rating: 4.7 (102 reviews)

Product Details

Payment & Shipping Terms

Payment Terms: L/C, T/T, Money Gram

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Industrial Pmsm Hvls Ceiling Fan, 7.3m Pmsm Hvls Ceiling Fan, RoHS Giant Industrial Fan


Trademark:	DS	Specification:	Diameter 7.3 Meter
Origin:	China	HS Code:	8414591000
Port:	Shenzhen, China	Transport Package:	Wooden
Material:	Aluminum Fan	Blade Material:	Aluminum
Type:	Exhaust Fan	Electric Current Type:	AC
Mounting:	Ceiling Fan	Certification:	RoHS, ISO, UL, CE, SGS

Trademark:	DS
Specification:	Diameter 7.3 Meter
Origin:	China
HS Code:	8414591000
Port:	Shenzhen, China
Transport Package:	Wooden
Material:	Aluminum Fan
Blade Material:	Aluminum
Type:	Exhaust Fan
Electric Current Type:	AC
Mounting:	Ceiling Fan
Certification:	RoHS, ISO, UL, CE, SGS

Description

Big Industrial Pmsm Hvls Ceiling Fan 7.3m For Air Cooling Ventilation

7.3m Big Industrial Pmsm Energy Saving Hvls Ceiling Fan For Air Cooling And Ventilation Fucntion

BIG INDUSTRIAL CEILING FANS

Product description

The wind blown from large industrial ceiling fan feels like natural breeze system,the wind speed is just the best cool feeling of human skin. Personnel can feel the temperature difference 5-8 degree, provide personnel a suitable working environment in hot summer,therefore improve the production efficiency.

Function of the fan:
1- ventilation

The fan improve air exchange in an entire space, it's perfect streamlined design can produces 2-3m/s speed three-dimensional wind, and makes you feel like enjoying the natural breeze system.It promotes the dispersion of smoke, moisture, carbon dioxide and poor air with high specific gravity.So as to improve the quality of working area, create healthy, dry and safe working environment, improve working efficiency.

2- convenience

It is convenience to be operated, control system adopts the latest poleless frequency converter control system.besides of convenience operation, the humanized operation interface also allows you enjoy the beauty of electronic and mechanic achieve the life.

3- Dehumidification

Because it can produce large air volume, effectively promote air circulation, so that the moisture is well dispersed, greatly reducing the probability of problems such as bedbugs, fungi and so on.
4)beautiful and durable
After complex surface treatment,the product can avoid the pain of period cleaning,the cost-performance ratio is the highest,the life of each fan can reach more than10 years.

4-energy saving

The rated power of the motor on the fan is 1.5KW,each fan can cover 1000 square meter working area,8 hours per day, is just 10 degree power energy consumption,compared to typical small fans and high power consumption air condition, large industrial ceiling fan can be called model of energy saving, can greatly reduce your operation cost.

Working principle :

Large ceiling fan is a series of products special developed for energy saving,working environment improvement. As we all know,refrigeration is not the only way to achieve the effect of cooling and comfort. The area of a fan could blow is determined by the diameter dimension of it, but has nothing to do with its speed.therefore, the industrial fan with large diameter and low speed combines all these characteristics .
After years deeply research and exploration,by integrating oversea advanced aeronautic technology,we Dai sen developed a kind of propeller blades with outstanding performance,it conforms continuous and silent breeze by slowly rotation.The large volume of airflow generated by its unique and high efficient blades push down,thus a nearly perfect propeller exhaust is constructed.
It pushes large volume of airflow to the ground,and constructed certain high level airflow moving horizontally,thus generates a overall air circulation.The advantage is overall ground coverage and three-dimensional circulation of air.
The speed of wind generated by"Large industrial ceiling fan"is about 1-3m/s,completely calculated according to the best feeling of cooling when the airflow pass through human skin.too strong airflow makes people feel irritable,a sense of being blown directly,too high speed of airflow also makes people dizzy,only the through the evaporation of skin combines of breeze speed,can beautifies people's feeling of cooling.

DAISEN PRODUCT CATALOG AS BELOW:

Series

Model

Numbers of the blades

Voltage

Power

Diameter

Drive mode

Max speed

Max air volume

Max coverage area(m²)

Fit for installation height(m)

Noise level

Net weight

Fengshen series
(Gearbox motor)

DS-7.3

220V/380V

1.5KW

7.3M (24FT)

Gearbox motor drive

50RPM

888000m3/h

1200

7~18

≤60db

156kg

DS-6.7

220V/380V

1.5KW

6.7M (22FT)

Gearbox motor drive

52RPM

822000m3/h

1000

6~15

≤60db

152kg

DS-6.1

220V/380V

1.5KW

6.1M (20FT)

Gearbox motor drive

55RPM

774000m3/h

800

6~13

≤60db

147kg

DS-5.5

220V/380V

1.5KW

5.5M (18FT)

Gearbox motor drive

60RPM

732000m3/h

600

5~11

≤60db

143kg

DS-5.0

220V/380V

1.5KW

5.0M (16FT)

Gearbox motor drive

65RPM

690000m3/h

450

5~9

≤60db

140kg

Fengxing series
(PMSM motor)

DX-7.3

220V

1.5KW

7.3M (24FT)

brushless direct drive

50RPM

888000m3/h

1200

7~18

≤38db

106kg

DX-6.7

220V

1.2KW

6.7M (22FT)

brushless direct drive

55RPM

822000m3/h

1000

6~15

≤38db

100kg

DX-6.1

220V

1.0KW

6.1M (20FT)

brushless direct drive

60RPM

774000m3/h

800

6~13

≤38db

94kg

DX-5.5

220V

0.75KW

5.5M (18FT)

brushless direct drive

65RPM

732000m3/h

600

5~11

≤38db

72kg

DX-5.0

220V

0.7KW

5.0M (16FT)

brushless direct drive

68RPM

690000m3/h

450

5~9

≤38db

68kg

DX-4.2

220V

0.6KW

4.2M (14FT)

brushless direct drive

75RPM

636000m3/h

300

4~7

≤38db

64kg

DX-3.6

220V

0.3KW

3.6M (12FT)

brushless direct drive

90RPM

393600m3/h

250

4~6

≤45db

42kg

DX-3.0

220V

0.2KW

3.0M (10FT)

brushless direct drive

100RPM

331800m3/h

200

4~5

≤45db

38kg

DX-2.4

220V

0.15KW

2.4M (8FT)

brushless direct drive

100RPM

273000m3/h

200

4~5

≤45db

34kg

DS SERIES FANS

7.3m Big Industrial Pmsm Energy Saving Hvls Ceiling Fan for Air Cooling and Ventilation Fucntion

DX SERIES FANS

Key component configuration
★drive device
•Fengshen series fan adopts Taiwan/German gearbox motor
•Fengxing series adopts the industry's first non carbon brush, large torque, DC drive motor, replacing the traditional motor speed reducer, realizing high integration, improving reliability and transmission efficiency
★control device
•Fengshen series fan adopts Taiwan / Germany brand inverter stepless speed change (optional explosion-proof controller) to configure circuit breaker overcurrent overload protection, cooling fan and other components
•Fengxing series fan adopts a special brush free controller
★fan blade
•The material of the fan blade adopts magnesium aluminum alloy T6 treatment, corrosion resistance, high strength, high toughness
•Advanced fluid simulation software CFD simulation and wind tunnel test, in line with aerodynamic anti fatigue;
•With the function of delay start, the load and impact of the motor are greatly reduced, and the service life is longer

★Structure components
•The structural parts are formed by Q235B laser, bending the stiffener structure, and the thickest part is 8mm.
•Alloy steel high strength bolts and anti-skid nuts are used for the bolts.
•Steel wire rope and turnbuckle tension structure to stabilize the fan against falling
• The integrated chassis can prevent the risk of fracture, the coupling anti falling structure can avoid screw defects, the chassis can be dropped, the hole arrangement design of plywood structure can prevent sliding, the adjustable structure is suitable for any installation conditions, and the arc-shaped adjustable waist hole can be adjusted to ensure the plane level of blade chassis

7.3m Big Industrial Pmsm Energy Saving Hvls Ceiling Fan for Air Cooling and Ventilation Fucntion

Comparison of three refrigeration methods in 1000 square meter plant

Refrigeration mode	Quantity	Power/unit	Tall power	General comparison
Central air conditioner	1	80KW	80KW	The walls and doors and windows of the plant are required to be insulated. The cost of one-time investment of the equipment is high, and the maintenance cost of replacing the filter element and adding refrigerant is high
Traditional industrial fan	40	0.3KW	12KW	The installation of traditional wall fans is limited by walls and columns. The power lines of floor fans are scattered, which has potential safety hazards. It is not safe for the hair of staff members to be mixed into the fan blades, which occupies a small space and covers a short service life
7.3M large industrial ceiling fan	1	1.5KW	1.5KW	Large coverage area, long service life, low maintenance cost, installation does not occupy the workshop space, safety and environmental protection

The energy consumption of large industrial ceiling fan is about 1 / 50 of that of central air conditioner and 1 / 10 of that of traditional industrial wall fan

***Suitable places of installation: Any high enough structure of factory,sport center,logistic place,car repair workshops,supermarket, airport,package workshop,animal breading industry,any kinds of hall,as well as fitness center etc.
***Height of installation: "Fengshen" series products for 6 meters to 20 meters height.
"Fengxing" series products for 3 meters to 6 meters height.

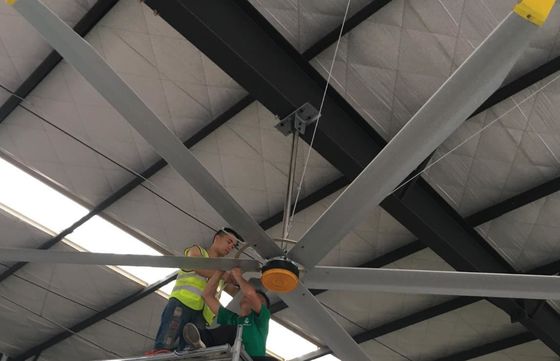

***Solutions for the three main kinds of installation structures as above shown pictures.

DAISNE Workshop overview

7.3m Big Industrial Pmsm Energy Saving Hvls Ceiling Fan for Air Cooling and Ventilation Fucntion

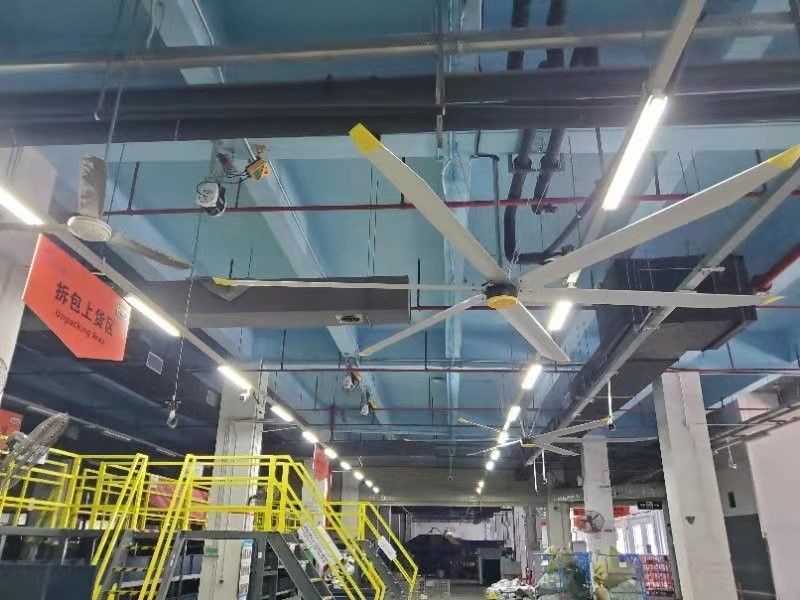

Typical customer applications

Certificates of DAISEN CEILING FANS

7.3m Big Industrial Pmsm Energy Saving Hvls Ceiling Fan for Air Cooling and Ventilation Fucntion

FAQ
Q:Are you a foreign trade company or a manufacturer ?
A: Yes , we are a manufacturer, Our factory is specialized in HVLS Industrial Ceiling Fans, cooling fan ,Exhaust Industrial Fan and so on.
Q: Can you make my brand on products or provide OEM service?
A: Yes.We provide OEM service.We are the OEM supplier for some famous companies
Q: What's your minimum quantity for order (MOQ)?
A: 1PCS
Q: what's the delivery time?
A: It depends on the order quantity. Delivery time will be within 3days after receiving payment by TT.
Q: What is your terms of payment ?
A: Payment≤10000USD, 100% in advance. Payment≥10000USD, 30% T/T in advance , balance before shipment.
Q: How long is the warranty?
A: we offer 3 years warranty to guarantee the quality for global customers.
