High Efficiency Hvls Industrial Ceiling Fans Ventilation Facility

Place of Origin Chengdu,China
Brand Name DAISEN
Certification RoHS, ISO, UL, CE, SGS
Model Number DS/DX
Minimum Order Quantity 1
Packaging Details wooden
Delivery Time 3-4 work days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Aluminum Motor PMSM/Gearbox
Black Silver Package Wooden
High Light

Aluminum Hvls Industrial Ceiling Fans

,

Gearbox Hvls Industrial Ceiling Fans

,

RoHS HVLS Industrial Fans

Leave a Message
Product Description

High Efficiency HVLS Industrial Ceiling Fan Ventilation Facility

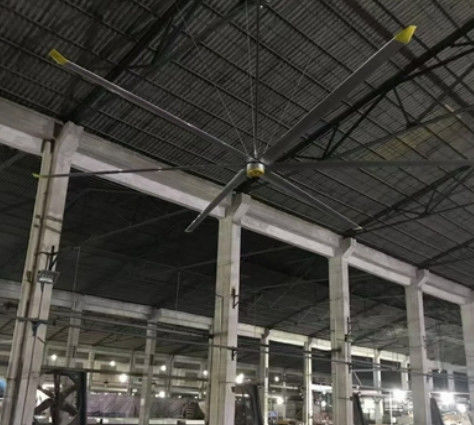

High Efficiency Hvls Industrial Ceiling Fans Ventilation Facility 0        High Efficiency Hvls Industrial Ceiling Fans Ventilation Facility 1    High Efficiency Hvls Industrial Ceiling Fans Ventilation Facility 2




Daisen PRODUCT SERIES
Series Model Numbers of the blades Voltage Power Diameter Drive mode Max speed Max air volume Max coverage area(m²) Fit for installation height(m) Noise level Net weight
DS
(Gearbox motor)
DS-7.3 6 220V/380V 1.5KW 7.3M (24FT) Gearbox motor drive 50RPM 888000m3/h 1200 7~18 60db 156kg
DS-6.7 6 220V/380V 1.5KW 6.7M (22FT) Gearbox motor drive 52RPM 822000m3/h 1000 6~15 60db 152kg
DS-6.1 6 220V/380V 1.5KW 6.1M (20FT) Gearbox motor drive 55RPM 774000m3/h 800 6~13 60db 147kg
DS-5.5 6 220V/380V 1.5KW 5.5M (18FT) Gearbox motor drive 60RPM 732000m3/h 600 5~11 60db 143kg
DS-5.0 6 220V/380V 1.5KW 5.0M (16FT) Gearbox motor drive 65RPM 690000m3/h 450 5~9 60db 140kg
DX
(PMSM motor)
DX-7.3 6 220V 1.5KW 7.3M (24FT) brushless direct drive 50RPM 888000m3/h 1200 7~18 38db 106kg
DX-6.7 6 220V 1.2KW 6.7M (22FT) brushless direct drive 55RPM 822000m3/h 1000 6~15 38db 100kg
DX-6.1 6 220V 1.0KW 6.1M (20FT) brushless direct drive 60RPM 774000m3/h 800 6~13 38db 94kg
DX-5.5 6 220V 0.75KW 5.5M (18FT) brushless direct drive 65RPM 732000m3/h 600 5~11 38db 72kg
DX-5.0 6 220V 0.7KW 5.0M (16FT) brushless direct drive 68RPM 690000m3/h 450 5~9 38db 68kg
DX-4.2 5 220V 0.6KW 4.2M (14FT) brushless direct drive 75RPM 636000m3/h 300 4~7 38db 64kg
DX-3.6 5 220V 0.3KW 3.6M (12FT) brushless direct drive 90RPM 393600m3/h 250 4~6 45db 42kg
DX-3.0 5 220V 0.2KW 3.0M (10FT) brushless direct drive 100RPM 331800m3/h 200 4~5 45db 38kg
DX-2.4 5 220V 0.15KW 2.4M (8FT) brushless direct drive 100RPM 273000m3/h 200 4~5 45db 34kg

High Efficiency Hvls Industrial Ceiling Fans Ventilation Facility 3

 DS series (gearbox motor)


High air volume up to 888000m³/h,fan diameter is 7.3m, 6 pieces of fan blade,6063 T6 heat treated,running speed 20-55RPM(poleless frequency converter control),net weight 126kg,air speed 1-3m/s; coverage area up to1200m2(13m installation height).nominated poweris 1.5KW,actually tested average power is 1.2KW. Noise value less than 60dB.



High Efficiency Hvls Industrial Ceiling Fans Ventilation Facility 4

 DX series (PMSM motor)

Air volume up to 888,000 m³/h, fan diameter 7.3m, 6 fan blades, 6063T6, operating speed 5-55RPM (controlled by stepless frequency converter), net weight 106kg, wind speed 1-4m/s; covering area up to 1200m2 (installation height 10m). Rated power 1.5KW, noise value less than 38dB.

Comparison of three refrigeration methods in 1000 square meter plant


Refrigeration mode Quantity Power/unit Tall power General comparison
Central air conditioner 1 80KW 80KW The walls and doors and windows of the plant are required to be insulated. The cost of one-time investment of the equipment is high, and the maintenance cost of replacing the filter element and adding refrigerant is high
Traditional industrial fan 40 0.3KW 12KW The installation of traditional wall fans is limited by walls and columns. The power lines of floor fans are scattered, which has potential safety hazards. It is not safe for the hair of staff members to be mixed into the fan blades, which occupies a small space and covers a short service life
7.3M HLVS industrial ceiling fan 1 1.5KW 1.5KW Large coverage area, long service life, low maintenance cost, installation does not occupy the workshop space, safety and environmental protection


The energy consumption of large industrial ceiling fan is about 1 / 50 of that of central air conditioner and 1 / 10 of that of traditional industrial wall fan


Application space of product

Industrial large-scale fan technology originated in the United States, and it is the most direct and effective way to solve the problem of ventilation and cooling in high-rise spaces. Localization has been widely used in every industry.
At present, Damori industrial large fans are widely used in: 4-20m high processing plants, warehousing logistics, indoor stadiums, gyms, station shopping malls, breeding and other places.



1.5kw Industrial Large Hvls Ceiling Fan Exhaust Fan and Ventilation Fan
1.5kw Industrial Large Hvls Ceiling Fan Exhaust Fan and Ventilation Fan
1.5kw Industrial Large Hvls Ceiling Fan Exhaust Fan and Ventilation Fan






Daisen HVLS Industrial Ceiling Fan
Daisen Technology Chengdu Co., Ltd, based in Longquan Economic Development Zone, Chengdu, China, the company is based on the HVAC industry, focusing on the research of products in the field of high space HVAC, not only to provide customers with safe, reliable, high-performance products, but also to provide professional,customized HVAC solutions according to the different needs of customers.
The company has a strong technical force oh product development and production team and a united and rigorous marketing team. At present, the company is in the process of rapid growth, not only in the Chinese provinces to set up offices, and began to engage in foreign trade business, now exported to countries such as: Honduras, Belarus, Nigeria, South Africa region, the United States, Singapore, etc. Our products have been all over the world, providing high-quality and competitive prices for factories around the ventilation equipment.


1.5kw Industrial Large Hvls Ceiling Fan Exhaust Fan and Ventilation Fan
1.5kw Industrial Large Hvls Ceiling Fan Exhaust Fan and Ventilation Fan
1.5kw Industrial Large Hvls Ceiling Fan Exhaust Fan and Ventilation Fan



The company's independently developed HVLS industrial fans have been widely used in military, aerospace, automobile manufacturing, Chinese car manufacturing, equipment manufacturing, general apparatus, food processing, logistics and transportation, home manufacturing, indoor dome, large breeding and other industries, not only in industrial places, including schools, churches and other places are also applicable.At the same time, according to customer demand, our company can also do private customization on the basis of the original fan, such as additional lighting, equipped with temperature control equipment, etc.





                               What are you looking for? Come and order!
