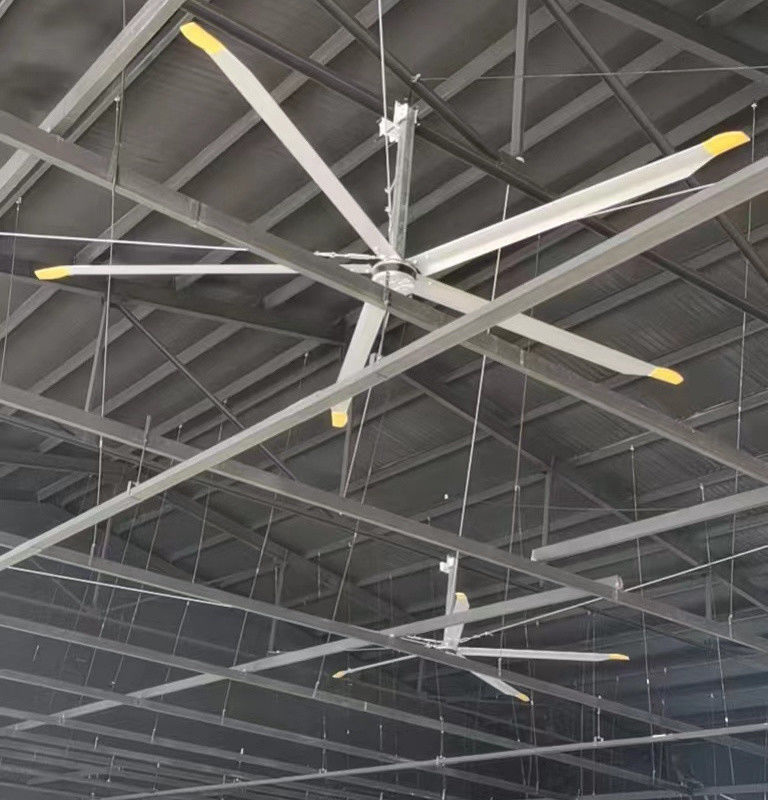

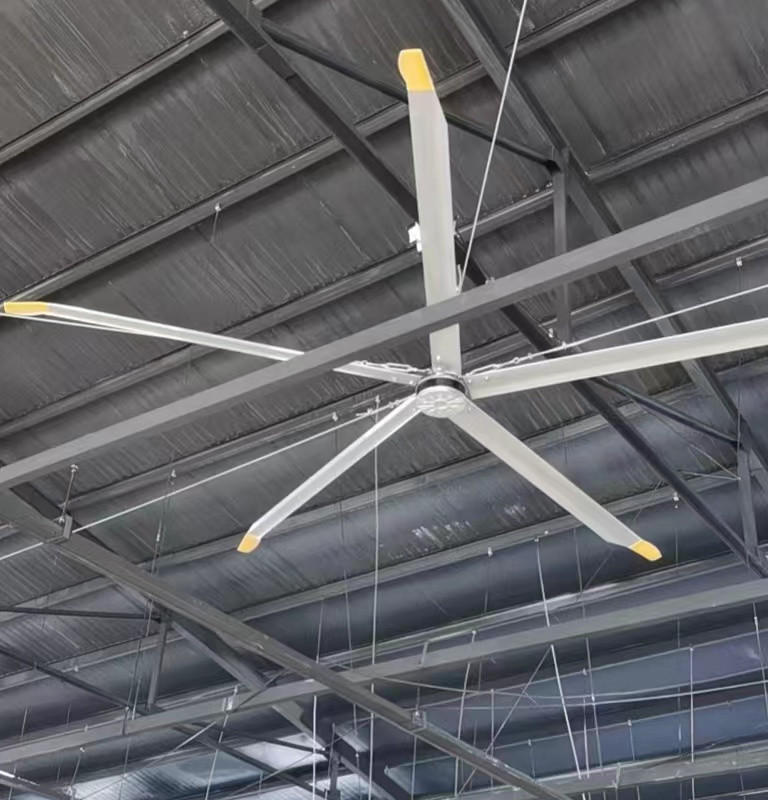

HVLS Industrial Indoor Exhaust Ceiling Fan 3m 10FT with Pmsm Motor

Place of Origin Chengdu,China
Brand Name DAISEN
Certification RoHS, ISO, UL, CE, SGS
Model Number DS/DX
Minimum Order Quantity 1
Packaging Details wooden
Delivery Time 5-8 work days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. DX Transport Package Wooden Package
Specification Diameter Size From 6.0 Meters Trademark DAISEN
Origin China, Chengdu HS Code 8414591000
Material Aluminum Fan Blade Material Aluminum
Type Cooling Fan Electric Current Type AC
Mounting Ceiling Fan Certification RoHS, ISO, CE
Customization Available | Customized Request
High Light

HVLS Exhaust Ceiling Fan

,

3m HVLS Exhaust Ceiling Fan

,

Pmsm Motor HVLS Industrial Fan

Leave a Message
Product Description

3m (10FT) Hvls Industrial Indoorr Exhaust Ceiling Fan with Pmsm Motor


Daisen HVLS Industrial Ceiling Fan


Daisen Technology Chengdu Co., Ltd. is a manufacturer specializing in the development and production of HVLS industrial ceiling fans, Daisen industrial ceiling fans have withstood the test of various complex environments and are widely used in all walks of life, and have been well received and trusted by customers at home and abroad. High-quality Daisen industrial ceiling fans are specially designed to ventilate tall spaces. We expect to create a more comfortable environment for workers in tall and hot spaces in the summer by spinning the fan blades to simulate natural breeze, thus enhancing work efficiency.

We are still developing and innovating, and have already broken through the technology of centralized control, temperature and humidity control. Every fan you buy and install in our company is approved to leave the factory after a long and uninterrupted fatigue test and other professional technical tests, and we have obtained international certifications such as CE and ISE, so the quality of every fan can be guaranteed.

Our goal at Daisen is to present the best quality products to you who demand quality, so that each fan becomes not only a fine product in our hands, but also a collector's item in your hands.
3m (10FT) Hvls Industrial Indoorr Exhaust Ceiling Fan with Pmsm Motor
3m (10FT) Hvls Industrial Indoorr Exhaust Ceiling Fan with Pmsm Motor
3m (10FT) Hvls Industrial Indoorr Exhaust Ceiling Fan with Pmsm Motor
The company's independently developed HVLS industrial fans have been widely used in military, aerospace, automobile manufacturing, Chinese car manufacturing, equipment manufacturing, general apparatus, food processing, logistics and transportation, home manufacturing, indoor dome, large breeding and other industries, not only in industrial places, including schools, churches and other places are also applicable.At the same time, according to customer demand, our company can also do private customization on the basis of the original fan, such as additional lighting, equipped with temperature control equipment, etc.

Daisen PRODUCT SERIES

Series Model Numbers of the blades Voltage Power Diameter Drive mode Max speed Max air volume Max coverage area(m²) Fit for installation height(m) Noise level Net weight
DS
(Gearbox motor)
DS-7.3 6 220V/380V 1.5KW 7.3M (24FT) Gearbox motor drive 50RPM 888000m3/h 1200 7~18 60db 156kg
DS-6.7 6 220V/380V 1.5KW 6.7M (22FT) Gearbox motor drive 52RPM 822000m3/h 1000 6~15 60db 152kg
DS-6.1 6 220V/380V 1.5KW 6.1M (20FT) Gearbox motor drive 55RPM 774000m3/h 800 6~13 60db 147kg
DS-5.5 6 220V/380V 1.5KW 5.5M (18FT) Gearbox motor drive 60RPM 732000m3/h 600 5~11 60db 143kg
DS-5.0 6 220V/380V 1.5KW 5.0M (16FT) Gearbox motor drive 65RPM 690000m3/h 450 5~9 60db 140kg
DX
(PMSM motor)
DX-7.3 6 220V 1.5KW 7.3M (24FT)  brushless direct drive 50RPM 888000m3/h 1200 7~18 38db 106kg
DX-6.7 6 220V 1.2KW 6.7M (22FT)  brushless direct drive 55RPM 822000m3/h 1000 6~15 38db 100kg
DX-6.1 6 220V 1.0KW 6.1M (20FT)  brushless direct drive 60RPM 774000m3/h 800 6~13 38db 94kg
DX-5.5 6 220V 0.75KW 5.5M (18FT)  brushless direct drive 65RPM 732000m3/h 600 5~11 38db 72kg
DX-5.0 6 220V 0.7KW 5.0M (16FT)  brushless direct drive 68RPM 690000m3/h 450 5~9 38db 68kg
DX-4.2 5 220V 0.6KW 4.2M (14FT)  brushless direct drive 75RPM 636000m3/h 300 4~7 38db 64kg
DX-3.6 5 220V 0.3KW 3.6M (12FT)  brushless direct drive 90RPM 393600m3/h 250 4~6 45db 42kg
DX-3.0 5 220V 0.2KW 3.0M (10FT)  brushless direct drive 100RPM 331800m3/h 200 4~5 45db 38kg
DX-2.4 5 220V 0.15KW 2.4M (8FT)  brushless direct drive 100RPM 273000m3/h 200 4~5 45db 34kg

3m (10FT) Hvls Industrial Indoorr Exhaust Ceiling Fan with Pmsm Motor
DX series (PMSM motor)

High air volume up to 888000m³/h,fan diameter is 7.3m, 6 pieces of fan blade, 6063T6,running speed 5-55RPM(poleless frequency converter control),net weight 106kg,air speed 1-4m/s; coverage area up to 1200m2(10m installation height).nominated poweris 1.5KW,Noise value is less than 38dB.
DS series (gearbox motor)

High air volume up to 888000m³/h,fan diameter is 7.3m, 6 pieces of fan blade,6063 T6 heat treated,running speed 20-55RPM(poleless frequency converter control),net weight 126kg,air speed 1-3m/s; coverage area up to1200m2(13m installation height).nominated poweris 1.5KW,actually tested average power is 1.2KW. Noise value less than 60dB.
3m (10FT) Hvls Industrial Indoorr Exhaust Ceiling Fan with Pmsm Motor

Comparison of three refrigeration methods in 1000 square meter plant

Refrigeration mode Quantity Power/unit Tall power General comparison
Central air conditioner 1 80KW 80KW The walls and doors and windows of the plant are required to be insulated. The cost of one-time investment of the equipment is high, and the maintenance cost of replacing the filter element and adding refrigerant is high
Traditional industrial fan 40 0.3KW 12KW The installation of traditional wall fans is limited by walls and columns. The power lines of floor fans are scattered, which has potential safety hazards. It is not safe for the hair of staff members to be mixed into the fan blades, which occupies a small space and covers a short service life
7.3M HLVS industrial ceiling fan 1 1.5KW 1.5KW Large coverage area, long service life, low maintenance cost, installation does not occupy the workshop space, safety and environmental protection


The energy consumption of large industrial ceiling fan is about 1 / 50 of that of central air conditioner and 1 / 10 of that of traditional industrial wall fan



Application space of product

The technology of industrial large fans originated from the United States, and it is the most direct and effective solution to the problem of ventilation and cooling in tall spaces. Localization has been widely used in various industries.
At present, DAISEN industrial large fans are widely used in: 4-20m high processing plants, warehousing and logistics, indoor sports stadiums, gyms, station shopping malls, breeding and other places.


3m (10FT) Hvls Industrial Indoorr Exhaust Ceiling Fan with Pmsm Motor
3m (10FT) Hvls Industrial Indoorr Exhaust Ceiling Fan with Pmsm Motor
3m (10FT) Hvls Industrial Indoorr Exhaust Ceiling Fan with Pmsm Motor
3m (10FT) Hvls Industrial Indoorr Exhaust Ceiling Fan with Pmsm Motor
3m (10FT) Hvls Industrial Indoorr Exhaust Ceiling Fan with Pmsm Motor
3m (10FT) Hvls Industrial Indoorr Exhaust Ceiling Fan with Pmsm Motor


 FAQ

            Q:Are you a foreign trade company or a manufacturer ?
            A: We are a manufacturer in China, and our factory is specialized in HVLS industrial ceiling fan, cooling fan ,exhaust industrial fan and so on.
            Q:  Can you make my brand on products or provide OEM service?
            A:  Yes.We provide OEM service.We are the OEM supplier for some famous companies.
            Q:  What's your minimum quantity for order (MOQ)?
            A:  1pcs.
            Q: what's the delivery time?
            A:  It depends on the order quantity. Normally,delivery time will be within 3 days after receiving payment by TT.
            Q: What is your terms of payment ?
            A: Payment ≤10000USD, 100% in advance.Payment≥10000USD, 30% T/T in advance, balance before shipment.
            Q:  How long is the warranty?
            A:  we offer 3 years warranty to guarantee the quality for global customers.
