Multipurpose Giant Ceiling Fans 380V 220V 1.5KW Energy Saving Ceiling Fan

Place of Origin Chengdu,China
Brand Name DAISEN
Certification RoHS, ISO, UL, CE, SGS
Model Number DS/DX
Minimum Order Quantity 1
Packaging Details wooden
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. DX/DS Specification Diameter Size From 6.0 Meters
Trademark DAISEN Origin China, Chengdu
HS Code 8414591000 Material Aluminum Fan
Type Centrifugal Fan Electric Current Type AC
Mounting Ceiling Fan Certification RoHS, ISO, CE
Transport Package Wooden Package Customization Available | Customized Request
High Light

220V Energy Saving Ceiling Fan

,

1.5KW power Saving Ceiling Fan

,

Multipurpose Giant Ceiling Fans

Leave a Message
Product Description

Big Hvls Energy Saving Industrial Pmsm Ceiling Fan Exhaust Large Fan for Air Cooling and Ventilation in



Product Description

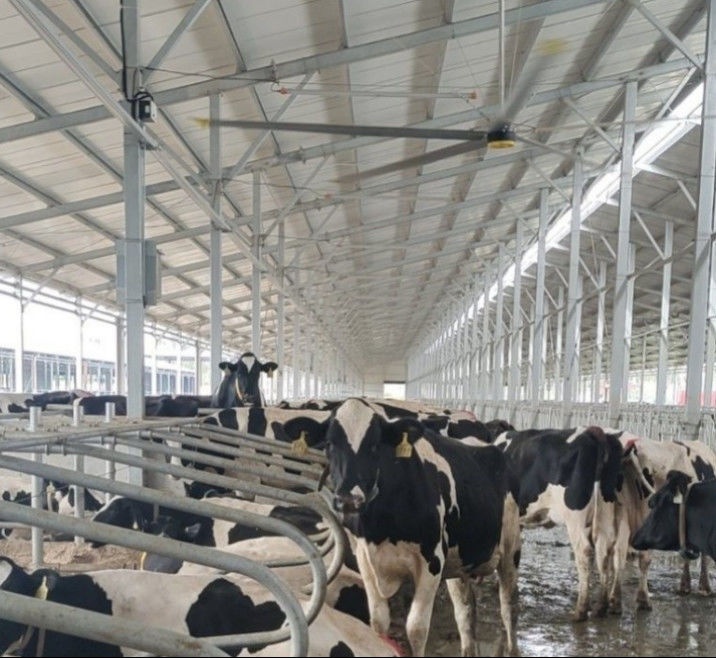

Big Hvls Energy Saving Industrial Pmsm Ceiling Fan Exhaust Large Fan for Air Cooling and Ventilation in Husbandry
HVLS INDUSTRIAL CEILING FANS




DAISEN PRODUCT SERIES AS BELOW:

Series Model Numbers of the blades Voltage Power Diameter Drive mode Max speed Max air volume Max coverage area(m²) Fit for installation height(m) Noise level Net weight
DS
(Gearbox motor)
DS-7.3 6 220V/380V 1.5KW 7.3M (24FT) Gearbox motor drive 50RPM 888000m3/h 1200 7~18 60db 156kg
DS-6.7 6 220V/380V 1.5KW 6.7M (22FT) Gearbox motor drive 52RPM 822000m3/h 1000 6~15 60db 152kg
DS-6.1 6 220V/380V 1.5KW 6.1M (20FT) Gearbox motor drive 55RPM 774000m3/h 800 6~13 60db 147kg
DS-5.5 6 220V/380V 1.5KW 5.5M (18FT) Gearbox motor drive 60RPM 732000m3/h 600 5~11 60db 143kg
DS-5.0 6 220V/380V 1.5KW 5.0M (16FT) Gearbox motor drive 65RPM 690000m3/h 450 5~9 60db 140kg
DX
(PMSM motor)
DX-7.3 6 220V 1.5KW 7.3M (24FT)  brushless direct drive 50RPM 888000m3/h 1200 7~18 38db 106kg
DX-6.7 6 220V 1.2KW 6.7M (22FT)  brushless direct drive 55RPM 822000m3/h 1000 6~15 38db 100kg
DX-6.1 6 220V 1.0KW 6.1M (20FT)  brushless direct drive 60RPM 774000m3/h 800 6~13 38db 94kg
DX-5.5 6 220V 0.75KW 5.5M (18FT)  brushless direct drive 65RPM 732000m3/h 600 5~11 38db 72kg
DX-5.0 6 220V 0.7KW 5.0M (16FT)  brushless direct drive 68RPM 690000m3/h 450 5~9 38db 68kg
DX-4.2 5 220V 0.6KW 4.2M (14FT)  brushless direct drive 75RPM 636000m3/h 300 4~7 38db 64kg
DX-3.6 5 220V 0.3KW 3.6M (12FT)  brushless direct drive 90RPM 393600m3/h 250 4~6 45db 42kg
DX-3.0 5 220V 0.2KW 3.0M (10FT)  brushless direct drive 100RPM 331800m3/h 200 4~5 45db 38kg
DX-2.4 5 220V 0.15KW 2.4M (8FT)  brushless direct drive 100RPM 273000m3/h 200 4~5 45db 34kg
Big Hvls Energy Saving Industrial Pmsm Ceiling Fan Exhaust Large Fan for Air Cooling and Ventilation in Husbandry
Big Hvls Energy Saving Industrial Pmsm Ceiling Fan Exhaust Large Fan for Air Cooling and Ventilation in Husbandry


DETAILS OF CEILING FAN

Big Hvls Energy Saving Industrial Pmsm Ceiling Fan Exhaust Large Fan for Air Cooling and Ventilation in Husbandry
DX  Large ceiling fan
Air volume up to 774000m³/h, fan diameter 6.0m, 6 fan blades, 6063T6, operating speed 5-65RPM (controlled by stepless inverter), net weight 82kg, wind speed 1-4m/s; coverage area up to 800m3 (10m installation height). The rated power is 1.0KW, and the noise value is less than 38dB.
EC Motor(PMSM  motor)

Poleless speed control box, German Weitu structure design, bult-in MOBK frequency controller,speed control display panel, France Schneider air switch over-current overload protection, control box cooling fan assembly, fan status indicator lamp, fan status detection, accidental automatic power cut-off,anti-electromagnetic interference
Big Hvls Energy Saving Industrial Pmsm Ceiling Fan Exhaust Large Fan for Air Cooling and Ventilation in Husbandry
Big Hvls Energy Saving Industrial Pmsm Ceiling Fan Exhaust Large Fan for Air Cooling and Ventilation in Husbandry
Poleless speed control box
Infinite speed control box, German Rittal structural design, built-in MOBK frequency controller, speed control display panel, French Schneider air switch overcurrent and overload protection, control box cooling fan assembly, fan status indicator, fan status detection, accidental automatic power off , anti-electromagnetic interference
blade

The blade is made of aeronautic Al-mg alloy material that passed T6 heat treatment process,it has high strength,highdurability,the cross section of the blade is propeller streamlined to ensure the best energy efficiency ratio. It is easy to clean after surface grinding and extremely oxidation treatment. It has low wind resistance and high efficiency,There are two reinforced tendons and over-reinforcing structure.the thinnest part is 2mm,and the thickest part is 5mm,so as to avoid fatigue loss of the blade.
Big Hvls Energy Saving Industrial Pmsm Ceiling Fan Exhaust Large Fan for Air Cooling and Ventilation in Husbandry
Big Hvls Energy Saving Industrial Pmsm Ceiling Fan Exhaust Large Fan for Air Cooling and Ventilation in Husbandry
Installation kits

Our company's unique design of row holes on the installation plate, can prevent the sliding of the installation plate, we also have installation kits for concrete and and circular tube structure as well as any other kinds of structure.
Steel rope

8mm diameter steel rope wrapped with anti-rust plastic,reinforced rope clip,with anti-skip turnbuckle screw tension and adjust the horizon of the fan, prevents shaking of the fan, absorb the vibration energy.
Big Hvls Energy Saving Industrial Pmsm Ceiling Fan Exhaust Large Fan for Air Cooling and Ventilation in Husbandry



Comparison of three refrigeration methods in 1000 square meter plant

Refrigeration mode Quantity Power/unit Tall power General comparison
Central air conditioner 1 80KW 80KW The walls and doors and windows of the plant are required to be insulated. The cost of one-time investment of the equipment is high, and the maintenance cost of replacing the filter element and adding refrigerant is high
Traditional industrial fan 40 0.3KW 12KW The installation of traditional wall fans is limited by walls and columns. The power lines of floor fans are scattered, which has potential safety hazards. It is not safe for the hair of staff members to be mixed into the fan blades, which occupies a small space and covers a short service life
7.3M HLVS industrial ceiling fan 1 1.5KW 1.5KW Large coverage area, long service life, low maintenance cost, installation does not occupy the workshop space, safety and environmental protection


The energy consumption of large industrial ceiling fan is about 1 / 50 of that of central air conditioner and 1 / 10 of that of traditional industrial wall fan



application space of product

The technology of industrial large fans originated from the United States, and it is the most direct and effective solution to the problem of ventilation and cooling in tall spaces. Localization has been widely used in various industries.
At present, DAISEN industrial large fans are widely used in: 4-20m high processing plants, warehousing and logistics, indoor sports stadiums, gyms, station shopping malls, breeding and other places.


Big Hvls Energy Saving Industrial Pmsm Ceiling Fan Exhaust Large Fan for Air Cooling and Ventilation in Husbandry
Big Hvls Energy Saving Industrial Pmsm Ceiling Fan Exhaust Large Fan for Air Cooling and Ventilation in Husbandry
Big Hvls Energy Saving Industrial Pmsm Ceiling Fan Exhaust Large Fan for Air Cooling and Ventilation in Husbandry



According to the demands of customers, DAISEN independently developed, designed and manufactured power and fluid mechanical fan blades through researching the market, which can provide a large area of the wind speed that simulates natural wind, drive air circulation in a closed room, effectively improve human body sensation and comfort, and operate smooth and reliable. DAISEN HVLS ceiling fans have a wider range of applications, lower prices, and can meet customer needs from multiple angles.
