Product Details
Place of Origin: Chengdu,China
Brand Name: DAISEN
Certification: RoHS, ISO, UL, CE, SGS
Model Number: DS/DX
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: wooden
Delivery Time: 3-4 work days
Payment Terms: T/T

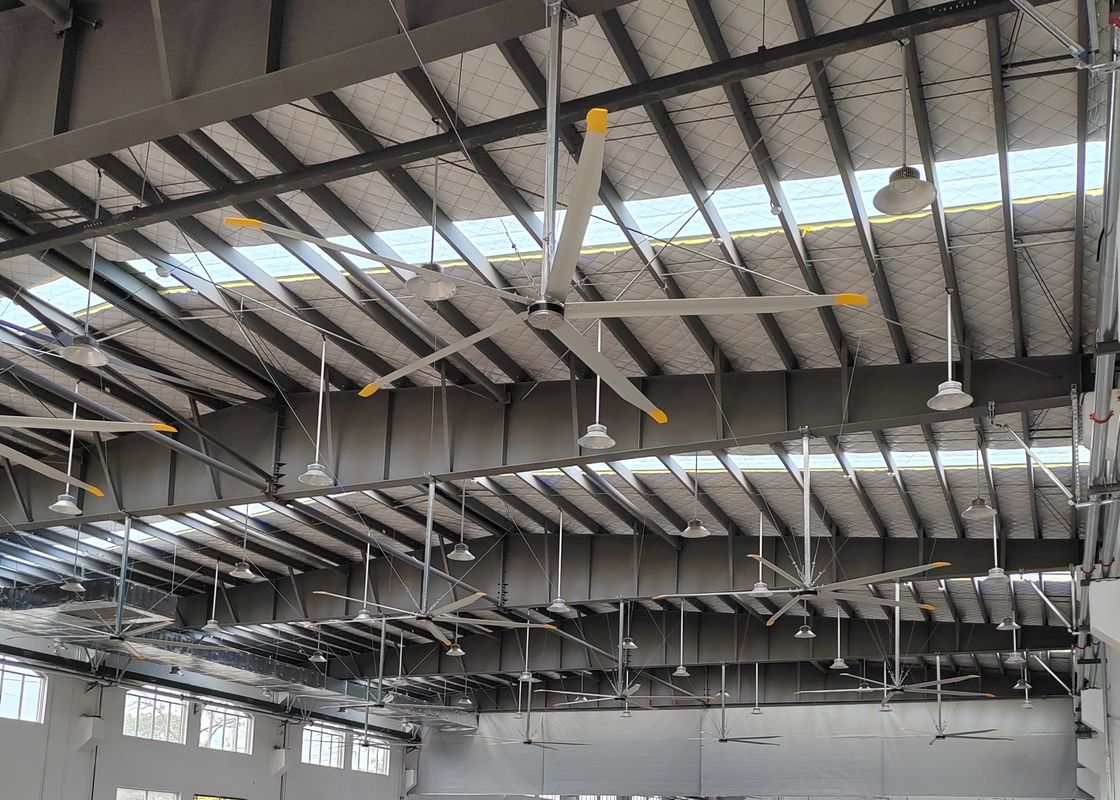

The company's independently developed HVLS industrial fans have been widely used in military, aerospace, automobile manufacturing, Chinese car manufacturing, equipment manufacturing, general apparatus, food processing, logistics and transportation, home manufacturing, indoor dome, large breeding and other industries, not only in industrial places, including schools, churches and other places are also applicable.At the same time, according to customer demand, our company can also do private customization on the basis of the original fan, such as additional lighting, equipped with temperature control equipment, etc.
| Series | Model | Numbers of the blades | Voltage | Power | Diameter | Drive mode | Max speed | Max air volume | Max coverage area(m²) | Fit for installation height(m) | Noise level | Net weight |
| DS (Gearbox motor) |
DS-7.3 | 6 | 220V/380V | 1.5KW | 7.3M (24FT) | Gearbox motor drive | 50RPM | 888000m3/h | 1200 | 7~18 | ≤60db | 156kg |
| DS-6.7 | 6 | 220V/380V | 1.5KW | 6.7M (22FT) | Gearbox motor drive | 52RPM | 822000m3/h | 1000 | 6~15 | ≤60db | 152kg | |
| DS-6.1 | 6 | 220V/380V | 1.5KW | 6.1M (20FT) | Gearbox motor drive | 55RPM | 774000m3/h | 800 | 6~13 | ≤60db | 147kg | |
| DS-5.5 | 6 | 220V/380V | 1.5KW | 5.5M (18FT) | Gearbox motor drive | 60RPM | 732000m3/h | 600 | 5~11 | ≤60db | 143kg | |
| DS-5.0 | 6 | 220V/380V | 1.5KW | 5.0M (16FT) | Gearbox motor drive | 65RPM | 690000m3/h | 450 | 5~9 | ≤60db | 140kg | |
| DX (PMSM motor) |
DX-7.3 | 6 | 220V | 1.5KW | 7.3M (24FT) | brushless direct drive | 50RPM | 888000m3/h | 1200 | 7~18 | ≤38db | 106kg |
| DX-6.7 | 6 | 220V | 1.2KW | 6.7M (22FT) | brushless direct drive | 55RPM | 822000m3/h | 1000 | 6~15 | ≤38db | 100kg | |
| DX-6.1 | 6 | 220V | 1.0KW | 6.1M (20FT) | brushless direct drive | 60RPM | 774000m3/h | 800 | 6~13 | ≤38db | 94kg | |
| DX-5.5 | 6 | 220V | 0.75KW | 5.5M (18FT) | brushless direct drive | 65RPM | 732000m3/h | 600 | 5~11 | ≤38db | 72kg | |
| DX-5.0 | 6 | 220V | 0.7KW | 5.0M (16FT) | brushless direct drive | 68RPM | 690000m3/h | 450 | 5~9 | ≤38db | 68kg | |
| DX-4.2 | 5 | 220V | 0.6KW | 4.2M (14FT) | brushless direct drive | 75RPM | 636000m3/h | 300 | 4~7 | ≤38db | 64kg | |
| DX-3.6 | 5 | 220V | 0.3KW | 3.6M (12FT) | brushless direct drive | 90RPM | 393600m3/h | 250 | 4~6 | ≤45db | 42kg | |
| DX-3.0 | 5 | 220V | 0.2KW | 3.0M (10FT) | brushless direct drive | 100RPM | 331800m3/h | 200 | 4~5 | ≤45db | 38kg | |
| DX-2.4 | 5 | 220V | 0.15KW | 2.4M (8FT) | brushless direct drive | 100RPM | 273000m3/h | 200 | 4~5 | ≤45db | 34kg |
DS series (gearbox motor)
High air volume up to 888000m³/h,fan diameter is 7.3m, 6 pieces of fan blade,6063 T6 heat treated,running speed 20-55RPM(poleless frequency converter control),net weight 126kg,air speed 1-3m/s; coverage area up to1200m2(13m installation height).nominated poweris 1.5KW,actually tested average power is 1.2KW. Noise value less than 60dB.
DX series (PMSM motor)
High air volume up to 888000m³/h,fan diameter is 7.3m, 6 pieces of fan blade, 6063T6,running speed 5-55RPM(poleless frequency converter control),net weight 106kg,air speed 1-4m/s; coverage area up to 1200m2(10m installation height).nominated poweris 1.5KW,Noise value is less than 38dB.
Comparison of three refrigeration methods in 1000 square meter plant
| Refrigeration mode | Quantity | Power/unit | Tall power | General comparison |
| Central air conditioner | 1 | 80KW | 80KW | The walls and doors and windows of the plant are required to be insulated. The cost of one-time investment of the equipment is high, and the maintenance cost of replacing the filter element and adding refrigerant is high |
| Traditional industrial fan | 40 | 0.3KW | 12KW | The installation of traditional wall fans is limited by walls and columns. The power lines of floor fans are scattered, which has potential safety hazards. It is not safe for the hair of staff members to be mixed into the fan blades, which occupies a small space and covers a short service life |
| 7.3M HLVS industrial ceiling fan | 1 | 1.5KW | 1.5KW | Large coverage area, long service life, low maintenance cost, installation does not occupy the workshop space, safety and environmental protection |
