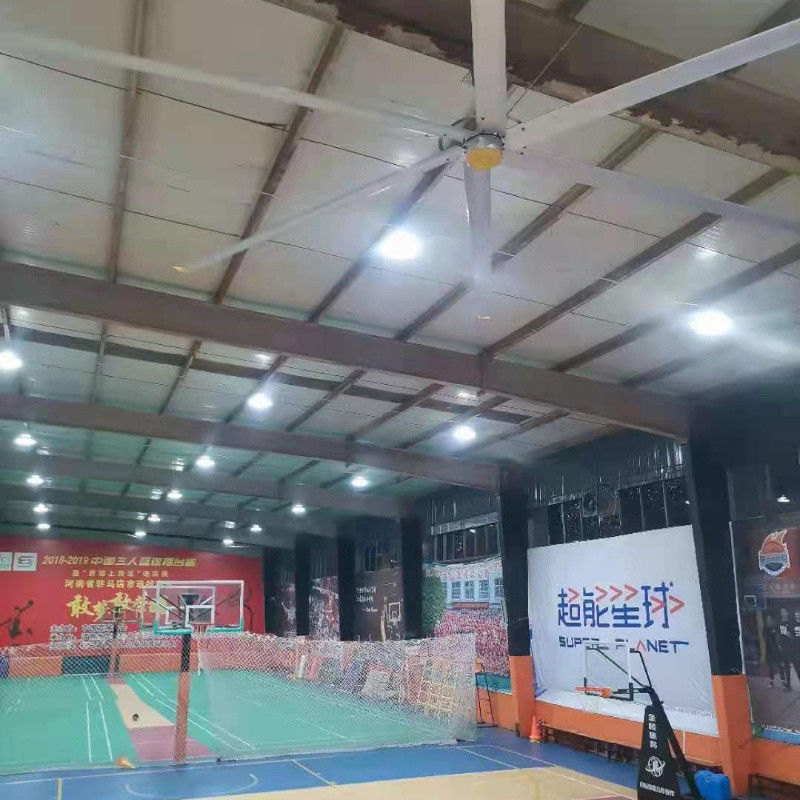

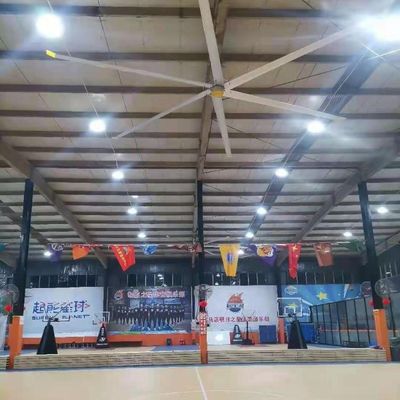

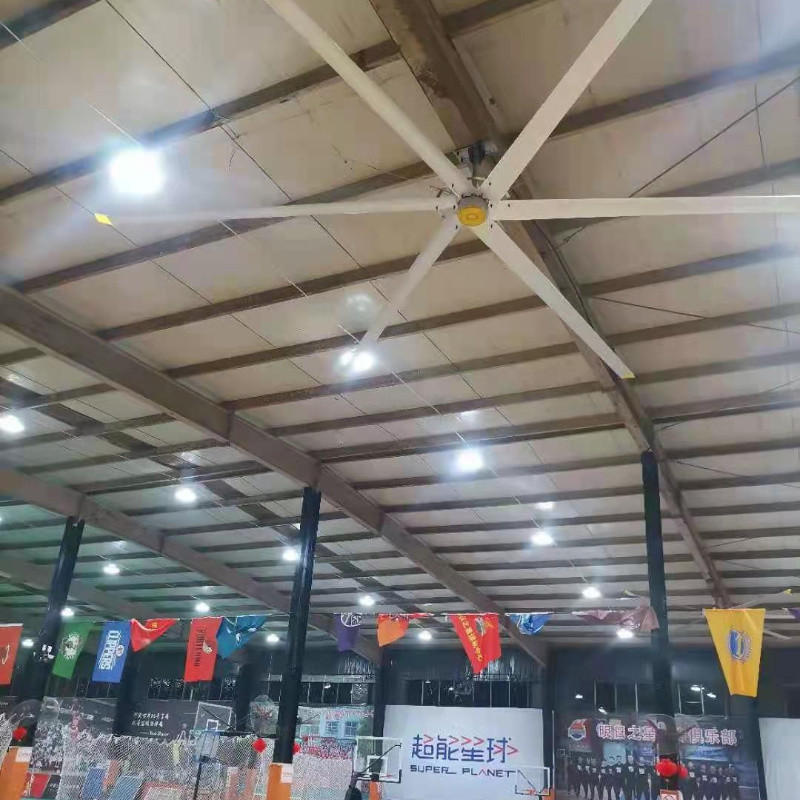

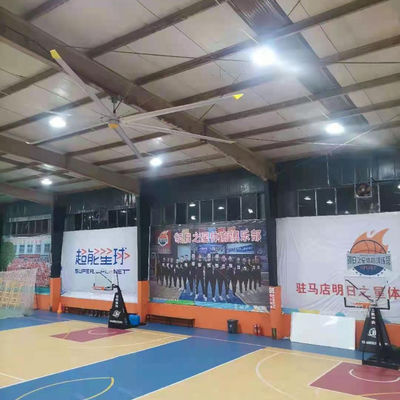

Button Control Fast Adjust Large HVLS Industrial Fans For Gymnasium Ventilation
| Place of Origin | Chengdu,China |
|---|---|
| Brand Name | DAISEN |
| Certification | RoHS, ISO, UL, CE, SGS |
| Model Number | DS/DX |
| Minimum Order Quantity | 1 |
| Packaging Details | wooden |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | DX/DS | Specification | Diameter Size From 6.0 Meters |
|---|---|---|---|
| Trademark | DAISEN | Origin | China, Chengdu |
| HS Code | 8414591000 | Material | Aluminum Fan |
| Type | Centrifugal Fan | Electric Current Type | AC |
| Mounting | Ceiling Fan | Certification | RoHS, ISO, CE |
| Transport Package | Wooden Package | Customization | Available | Customized Request |
| High Light | Button Control HVLS Industrial Fans,Fast Adjust large hvls fans,Gymnasium Ventilation large hvls fans |
||
Product Description
Product Description
HVLS INDUSTRIAL CEILING FANS
According to the demands of customers, DAISEN independently developed, designed and manufactured power and fluid mechanical fan blades through researching the market, it can provide an area of the wind speed that simulates natural wind,driving air circulation in a closed room, effectively improve human body sensation and comfort, and operate smooth and reliable. Dasien HVLS ceiling fan has a wider range of application, lower prices, and can meet customer needs from multiple angles.
DAISEN PRODUCT SERIES
| Series | Model | Numbers of the blades | Voltage | Power | Diameter | Drive mode | Max speed | Max air volume | Max coverage area(m²) | Fit for installation height(m) | Noise level | Net weight |
| DS (Gearbox motor) |
DS-7.3 | 6 | 220V/380V | 1.5KW | 7.3M (24FT) | Gearbox motor drive | 50RPM | 888000m3/h | 1200 | 7~18 | ≤60db | 156kg |
| DS-6.7 | 6 | 220V/380V | 1.5KW | 6.7M (22FT) | Gearbox motor drive | 52RPM | 822000m3/h | 1000 | 6~15 | ≤60db | 152kg | |
| DS-6.1 | 6 | 220V/380V | 1.5KW | 6.1M (20FT) | Gearbox motor drive | 55RPM | 774000m3/h | 800 | 6~13 | ≤60db | 147kg | |
| DS-5.5 | 6 | 220V/380V | 1.5KW | 5.5M (18FT) | Gearbox motor drive | 60RPM | 732000m3/h | 600 | 5~11 | ≤60db | 143kg | |
| DS-5.0 | 6 | 220V/380V | 1.5KW | 5.0M (16FT) | Gearbox motor drive | 65RPM | 690000m3/h | 450 | 5~9 | ≤60db | 140kg | |
| DX (PMSM motor) |
DX-7.3 | 6 | 220V | 1.5KW | 7.3M (24FT) | brushless direct drive | 50RPM | 888000m3/h | 1200 | 7~18 | ≤38db | 106kg |
| DX-6.7 | 6 | 220V | 1.2KW | 6.7M (22FT) | brushless direct drive | 55RPM | 822000m3/h | 1000 | 6~15 | ≤38db | 100kg | |
| DX-6.1 | 6 | 220V | 1.0KW | 6.1M (20FT) | brushless direct drive | 60RPM | 774000m3/h | 800 | 6~13 | ≤38db | 94kg | |
| DX-5.5 | 6 | 220V | 0.75KW | 5.5M (18FT) | brushless direct drive | 65RPM | 732000m3/h | 600 | 5~11 | ≤38db | 72kg | |
| DX-5.0 | 6 | 220V | 0.7KW | 5.0M (16FT) | brushless direct drive | 68RPM | 690000m3/h | 450 | 5~9 | ≤38db | 68kg | |
| DX-4.2 | 5 | 220V | 0.6KW | 4.2M (14FT) | brushless direct drive | 75RPM | 636000m3/h | 300 | 4~7 | ≤38db | 64kg | |
| DX-3.6 | 5 | 220V | 0.3KW | 3.6M (12FT) | brushless direct drive | 90RPM | 393600m3/h | 250 | 4~6 | ≤45db | 42kg | |
| DX-3.0 | 5 | 220V | 0.2KW | 3.0M (10FT) | brushless direct drive | 100RPM | 331800m3/h | 200 | 4~5 | ≤45db | 38kg | |
| DX-2.4 | 5 | 220V | 0.15KW | 2.4M (8FT) | brushless direct drive | 100RPM | 273000m3/h | 200 | 4~5 | ≤45db | 34kg |
DX-7.3 series (PMSM motor)
High air volume up to 888000m³/h,fan diameter is 7.3m, 6 pieces of fan blade, 6063T6,running speed 5-55RPM(poleless frequency converter control),net weight 106kg,air speed 1-4m/s; coverage area up to 1200m2(10m installation height).nominated poweris 1.5KW,Noise value is less than 38dB.
High air volume up to 888000m³/h,fan diameter is 7.3m, 6 pieces of fan blade, 6063T6,running speed 5-55RPM(poleless frequency converter control),net weight 106kg,air speed 1-4m/s; coverage area up to 1200m2(10m installation height).nominated poweris 1.5KW,Noise value is less than 38dB.
DS-7.3 series (gearbox motor)
High air volume up to 888000m³/h,fan diameter is 7.3m, 6 pieces of fan blade,6063 T6 heat treated,running speed 20-55RPM(poleless frequency converter control),net weight 126kg,air speed 1-3m/s; coverage area up to1200m2(13m installation height).nominated poweris 1.5KW,actually tested average power is 1.2KW. Noise value less than 60dB.
High air volume up to 888000m³/h,fan diameter is 7.3m, 6 pieces of fan blade,6063 T6 heat treated,running speed 20-55RPM(poleless frequency converter control),net weight 126kg,air speed 1-3m/s; coverage area up to1200m2(13m installation height).nominated poweris 1.5KW,actually tested average power is 1.2KW. Noise value less than 60dB.
Comparison of three refrigeration methods in 1000 square meter plant
| Refrigeration mode | Quantity | Power/unit | Tall power | General comparison |
| Central air conditioner | 1 | 80KW | 80KW | The walls and doors and windows of the plant are required to be insulated. The cost of one-time investment of the equipment is high, and the maintenance cost of replacing the filter element and adding refrigerant is high |
| Traditional industrial fan | 40 | 0.3KW | 12KW | The installation of traditional wall fans is limited by walls and columns. The power lines of floor fans are scattered, which has potential safety hazards. It is not safe for the hair of staff members to be mixed into the fan blades, which occupies a small space and covers a short service life |
| 7.3M HLVS industrial ceiling fan | 1 | 1.5KW | 1.5KW | Large coverage area, long service life, low maintenance cost, installation does not occupy the workshop space, safety and environmental protection |
The energy consumption of large industrial ceiling fan is about 1 / 50 of that of central air conditioner and 1 / 10 of that of traditional industrial wall fan
application space of product
The technology of industrial large fans originated from the United States, and it is the most direct and effective solution to the problem of ventilation and cooling in tall spaces. Localization has been widely used in various industries.
At present, DAISEN industrial large fans are widely used in: 4-20m high processing plants, warehousing and logistics, indoor sports stadiums, gyms, station shopping malls, breeding and other places.
The technology of industrial large fans originated from the United States, and it is the most direct and effective solution to the problem of ventilation and cooling in tall spaces. Localization has been widely used in various industries.
At present, DAISEN industrial large fans are widely used in: 4-20m high processing plants, warehousing and logistics, indoor sports stadiums, gyms, station shopping malls, breeding and other places.
