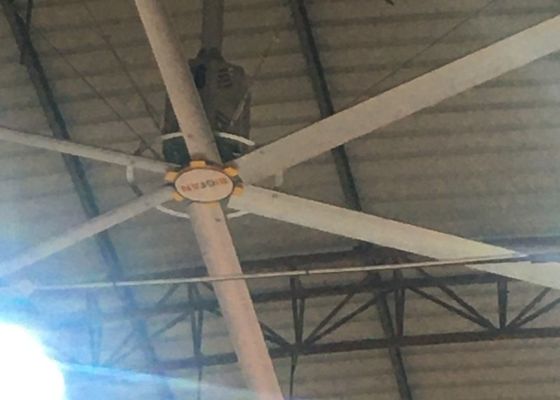

DS Series Warehouse High Power Workshop Ceiling Fan For Indoor Gymnasium

Product Details

Place of Origin: Chengdu,China

Brand Name: DAISEN

Certification: RoHS, ISO, UL, CE, SGS

Model Number: DS

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: wooden

Payment Terms: L/C, T/T, Money Gram

Get Best Price
Contact Now
Specifications
Highlight:

1.5KW Workshop Ceiling Fan

,

DS Series Workshop Ceiling Fan

,

Diameter 5.3 Meter Giant Ceiling Fans

Specification:
Diameter 5.3 Meter
Origin:
China
HS Code:
8414591000
Port:
Shenzhen, China
Transport Package:
Wooden
Material:
Aluminum Fan
Blade Material:
Aluminum
Type:
Exhaust Fan
Electric Current Type:
AC
Mounting:
Ceiling Fan
Certification:
RoHS, ISO, UL, CE, SGS
Specification:
Diameter 5.3 Meter
Origin:
China
HS Code:
8414591000
Port:
Shenzhen, China
Transport Package:
Wooden
Material:
Aluminum Fan
Blade Material:
Aluminum
Type:
Exhaust Fan
Electric Current Type:
AC
Mounting:
Ceiling Fan
Certification:
RoHS, ISO, UL, CE, SGS
Description
DS Series Warehouse High Power Workshop Ceiling Fan For Indoor Gymnasium

Product Description

Geared Motor Ceiling  FAN

DS Series Factory Warehouse High-Power Workshop Ceiling Fan For Indoor Gymnasium

The DS traditional HVLS Fan is a common industrial machine widely used in industarial plants,logistics storage,waiting rooms,exhibition halls,gymnasiums,etc.as a common industrial machine for space ventilation and personnel cooling. The industrail fan can push a large amount of airflow to the ground,forming a certain height of airflow layer on the ground to move horizontally,thus promoting the overall air circulation. The maximun diameter of large industrial fans can reach 7.3 meters,and the streamlined fan blades manufactured by aerodynamic principles and advanced technology can drive a large amount of air with only low power,and generate a large area of natural breeze system,which plays a role in ventilation. Dual function of cooling. Compared with traditinal HVAC and small-speed fans,it has unparalleled application advantages and is a perfect solution for ventilation and cooling in tall spaces.



Technical Parameters



Model Fan diameter Motor power Max speed Rated voltage Air volume Max coverage Weight Noise
DS-7.3 7.3M(24FT) 1.5KW 50rmp 220V/380V 14800M3/min 1200m3 126KG ≤60db
DS-6.7 6.7M(22FT) 1.5KW 55rmp 220V/380V 13600M3/min 1000m3 123KG ≤60db
DS-6.1 6.1M(20FT) 1.5KW 55rmp 220V/380V 12900M3/min 800m3 119KG ≤60db
DS-5.5 5.5(18FT) 1.5KW 55rmp 220V/380V 12200M3/min 600m3 116KG
≤60db

DAISEN 'DS series',as an earlier generation of HVLS fans,have been selling well in the market for more than ten years. They are equipped with German brand geared motors,with large torque and large air volume,and complete machine safety protection. All accessories meet industrail standards and are suitable for various harsh and harsh industrial occasions.



China Traditional Hvls Electric Ceiling Fan with 6 Aluminum Blades
China Traditional Hvls Electric Ceiling Fan with 6 Aluminum Blades

* Standard universal mount compatible with most common industrial building structures
* Up to 240Nm of torque for easier and more stable high air volume output
* The fan blade handle is flexibly connected to release high-frequency vibration, and there is no metal fatigue for long-term operation
* Comply with CCC, CE, UL and other international standards, and key components have passed safety testing
* Industrial-grade safety product requirements, long-term stable operation in harsh and harsh environments



Features of Traditional Geared Motor Celing Fans



China Traditional Hvls Electric Ceiling Fan with 6 Aluminum Blades
Universal joint:
The galvanized structure steel universal joint,can adjusts the horizontal and vertical direction to ensure the fan in vertical status. So that ensuring the balance of the fan in the process of rotation, and reducing the torsion transmission from the fan to the building.
coupling:
40Cr alloy coupling, CNC machining to ensure transmission stability
Other product accessories:
Select high strength screws greater than 8.8 grade according to different connecting parts of the fan,anti-loosing self-locking screws and and anti-slip nuts,together with anti-loosing thread glue,anti-falling connection rings,anti-falling connection parts of the blade.
China Traditional Hvls Electric Ceiling Fan with 6 Aluminum Blades
China Traditional Hvls Electric Ceiling Fan with 6 Aluminum Blades
Gearbox Motor:
customized design for DAI SEN large industrial ceiling fans. configured with German ABM gearbox motor,permanent maintenance free,Enlarged alloy steel structure design, Low noise with low backlash assembly and grinding process.the motor adopts German H-class insulation grade.
Installation kits:
Our company's unique design of row holes on the installation plate, can prevent the sliding of the installation plate, we also have installation kits for concrete and and circular tube structure as well as any other kinds of structure.
China Traditional Hvls Electric Ceiling Fan with 6 Aluminum Blades
China Traditional Hvls Electric Ceiling Fan with 6 Aluminum Blades
Steel rope:
8mm diameter steel rope wrapped with anti-rust plastic,reinforced rope clip,with anti-skip turnbuckle screw tension and adjust the horizon of the fan, prevents shaking of the fan, absorb the vibration energy.
blade:
The blade is made of aeronautic Al-mg alloy material that passed T6 heat treatment process,it has high strength,highdurability,the cross section of the blade is propeller streamlined to ensure the best energy efficiency ratio. It is easy to clean after surface grinding and extremely oxidation treatment. It has low wind resistance and high efficiency,There are two reinforced tendons and over-reinforcing structure.the thinnest part is 2mm,and the thickest part is 5mm,so as to avoid fatigue loss of the blade.
China Traditional Hvls Electric Ceiling Fan with 6 Aluminum Blades





Installation Diagram

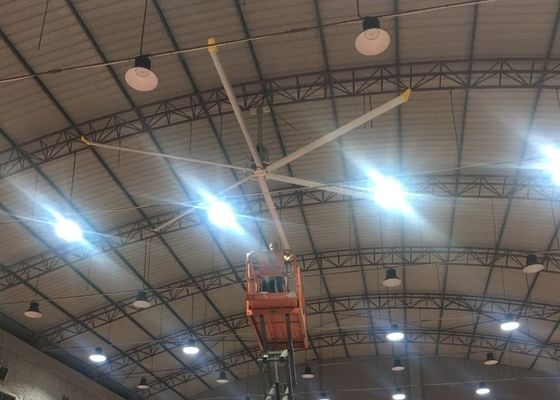

* The height of the pharmaceutical workshop is more than 4 meters. It can be installed regardless of the structural steel structure, concrete structure, spherical grid structure or complex structure of the workshop; there are no special requirements for the installation site; it can be installed with or without traffic inside the workshop


* The safe installation space of the fan is greater than 80cm. The ideal height of the DS series installation space is between 4-20 meters.



China Traditional Hvls Electric Ceiling Fan with 6 Aluminum Blades
