Large Paddle Giant Ceiling Natural Air Cooling HVLS Fans 380ac 1.5kw Motor

Brand Name DAISEN
Model Number DS
Packaging Details wooden
Payment Terms L/C, T/T, Money Gram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Trademark DX Specification Diameter 7.3 Meter
Origin China HS Code 8414591000
Port Shenzhen, China Transport Package Wooden
Material Aluminum Fan Blade Material Aluminum
Type Exhaust Fan Electric Current Type AC
Mounting Ceiling Fan Certification RoHS, ISO, UL, CE, SGS
High Light

Natural Air Cooling HVLS Fans

,

Giant Ceiling HVLS Fans

,

380ac Giant Ceiling Fans

Leave a Message
Product Description

380ac 1.5kw Motor Large Paddle Extra Large Giant Ceiling Fans Natural Air Cooling Hvsl Fans

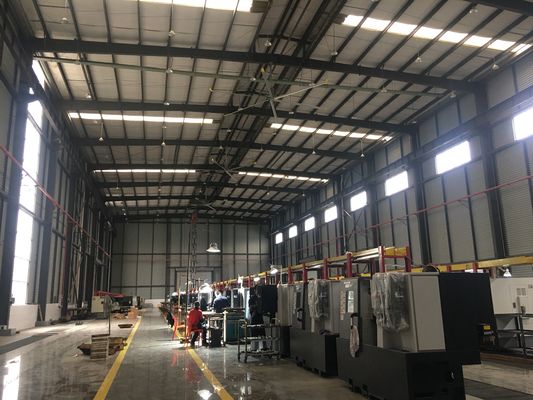

Large Paddle Giant Ceiling Natural Air Cooling HVLS Fans 380ac 1.5kw Motor 0

What’s the DAISEN HVLS celling fan?







HVLS fans are high volume and low speed. Promotes efficient circulation of air throughout the building space. Through the slow rotation of the propeller blades, a breeze similar to the natural wind effect is generated, which instantly blows away the sultry heat, so that the air in the entire building space can flow effectively and bring coolness.

The wind speed generated by the "big fan" is about 1-4 M / s, which is the most suitable wind speed calculated for the best air volume of human skin, which can make people in the whole closed and hot space feel comfortable and cool in an instant. The ideal solution for plant ventilation and cooling.


Why choose the DAISEN HVLS fan?

  •  Super Large coverage range

           24FT fan’s maximum coverage radius of 21m, coverage range up to 1300sqm

  • Comfortable and natural air cooling

          1-3 M/S natural wind, covering the human body, evaporating sweat and cooling the body by 3-8 degrees

  • Omnidirectional circulating ventilation

          Multi angel, no dead area, huge air flow, take away waste gas and dust, dehumidification and mildew prevention

  • Eliminate temperature stratification

          The fan blade reversely pushes the air circulation on the roof and stirs the air flow to effectively eliminate the temperature stratification

  • Economic, environmental protection and energy saving

         The power cons umption is 1.5 degrees per hour. When used with air conditioner, the energy consumption can be reduced by 30%


DS series fan(gearbox motor fan)



Large Paddle Giant Ceiling Natural Air Cooling HVLS Fans 380ac 1.5kw Motor 1





The DS series ceiling fan adopts industrial safety structure and uses gearbox motor. It is a high-quality industrial super-large ceiling fan. It has the characteristics of safety, quietness, small size and maintenance-free. It is suitable for low noise requirements and limited installation space.



1. gearbox motor, more efficient, more energy-saving, maintenance-free for life.

2. Multiple safety protection elements to ensure the overall safety of the fan.

3. Frequency conversion speed regulation, smoother and quieter start, multiple fault protection.

Pneumatic variable cross-section line ear fan blades, the airflow is more balanced.



Fengxing series
(PMSM motor)
DX-7.3 6 220V 1.5KW 7.3M (24FT) brushless direct drive 50RPM 888000m3/h 1200 7~18 ≤38db 106kg
  DX-6.7 6 220V 1.2KW 6.7M (22FT) brushless direct drive 55RPM 822000m3/h 1000 6~15 ≤38db 100kg
  DX-6.1 6 220V 1.0KW 6.1M (20FT) brushless direct drive 60RPM 774000m3/h 800 6~13 ≤38db 94kg
  DX-5.5 6 220V 0.75KW 5.5M (18FT) brushless direct drive 65RPM 732000m3/h 600 5~11 ≤38db 72kg
  DX-5.0 6 220V 0.7KW 5.0M (16FT) brushless direct drive 68RPM 690000m3/h 450 5~9 ≤38db 68kg
  DX-4.2 5 220V 0.6KW 4.2M (14FT) brushless direct drive 75RPM 636000m3/h 300 4~7 ≤38db 64kg
  DX-3.6 5 220V 0.3KW 3.6M (12FT) brushless direct drive 90RPM 393600m3/h 250 4~6 ≤45db 42kg
  DX-3.0 5 220V 0.2KW 3.0M (10FT) brushless direct drive 100RPM 331800m3/h 200 4~5 ≤45db 38kg
  DX-2.4 5 220V 0.15KW 2.4M (8FT) brushless direct drive 100RPM 273000m3/h 200 4~5 ≤45db 34



Technical Advantages





1.Controller



Large Paddle Giant Ceiling Natural Air Cooling HVLS Fans 380ac 1.5kw Motor 2



Poleless speed control box, German Weitu structure design, speed control display panel, France Schneider air switch over-current overload protection, control box cooling fan assembly, fan status indicator lamp, fan status detection, accidental automatic power cut-off, anti-electromagnetic interference.



2.Blades



Large Paddle Giant Ceiling Natural Air Cooling HVLS Fans 380ac 1.5kw Motor 3



The blade is made of aeronautic Al-alloy material that passed T6 heat treatment process, it has high strength, high durability; Advanced fluid simulation software, in line with the principle of aerodynamics.



Structure Diagram





Large Paddle Giant Ceiling Natural Air Cooling HVLS Fans 380ac 1.5kw Motor 4

•The structural parts are formed by Q235B laser, bending the stiffener structure, and the thickest part is 8mm.



•Alloy steel high strength bolts and anti-skid nuts are used for the bolts.



•Steel wire rope and turnbuckle tension structure to stabilize the fan against falling



• The integrated chassis can prevent the risk of fracture, the coupling anti falling structure can avoid screw defects, the chassis can be dropped, the hole arrangement design of plywood structure can prevent sliding, the adjustable structure is suitable for any installation conditions, and the arc-shaped adjustable waist hole can be adjusted to ensure the plane level of blade chassis





What are you waiting for? Come and take it away!
