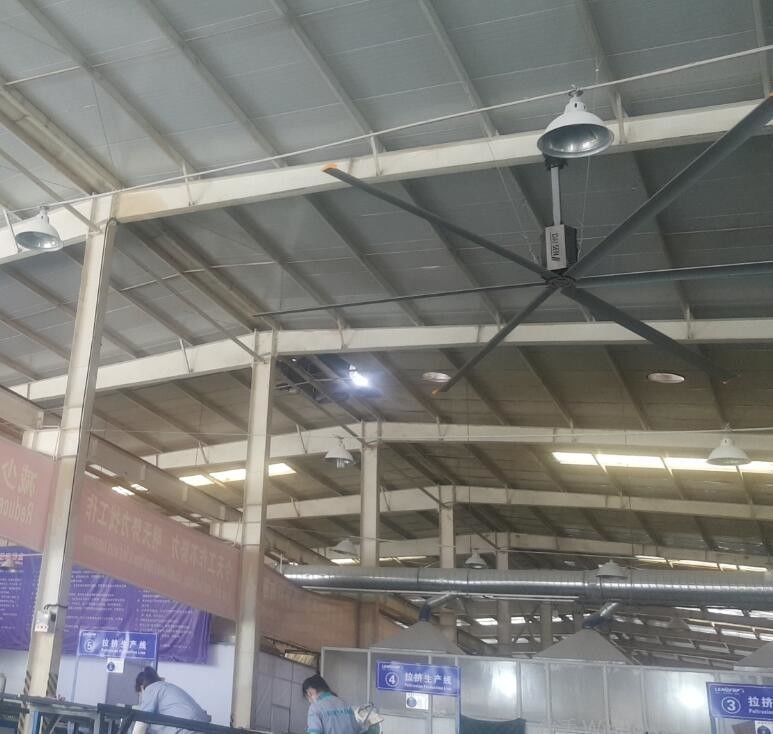

6.7M 263 Inch Exhaust Large Warehouse HVLS Industrial Fans

Place of Origin China
Brand Name daisen
Certification RoHS, ISO, UL, CE, SGS
Model Number DS
Minimum Order Quantity 1PCS
Price Negotiation
Packaging Details Wooden
Delivery Time 3 days
Payment Terms L/C, T/T, Money Gram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
HS Code 8414591000 Port Shenzhen, China
Transport Package Wooden Certification RoHS, ISO, UL, CE, SGS
Specification Diameter 7.3 Meter Trademark DS
Origin China
High Light

0.75KW Warehouse HVLS Industrial Fans

,

263 Inch HVLS Industrial Fans

,

0.75KW large industrial fans for warehouses

Leave a Message
Product Description

Large Industrial Ceiling Fan with 7.3m Diameter for Auto Workshop Ventilaition



Comparison of three refrigeration methods in 1000 square meter plant
Refrigeration mode Quantity Power/unit Tall power General comparison
Central air conditioner 1 80KW 80KW The walls and doors and windows of the plant are required to be insulated. The cost of one-time investment of the equipment is high, and the maintenance cost of replacing the filter element and adding refrigerant is high
Traditional industrial fan 40 0.3KW 12KW The installation of traditional wall fans is limited by walls and columns. The power lines of floor fans are scattered, which has potential safety hazards. It is not safe for the hair of staff members to be mixed into the fan blades, which occupies a small space and covers a short service life
7.3M large industrial ceiling fan 1 1.5KW 1.5KW Large coverage area, long service life, low maintenance cost, installation does not occupy the workshop space, safety and environmental protection


DAISEN PRODUCT CATALOG AS BELOW:

Series Model Numbers of the blades Voltage Power Diameter Drive mode Max speed Max air volume Max coverage area(m²) Fit for installation height(m) Noise level Net weight
Fengshen series
(Gearbox motor)
DS-7.3 6 220V/380V 1.5KW 7.3M (24FT) Gearbox motor drive 50RPM 888000m3/h 1200 7~18 60db 156kg
DS-6.7 6 220V/380V 1.5KW 6.7M (22FT) Gearbox motor drive 52RPM 822000m3/h 1000 6~15 60db 152kg
DS-6.1 6 220V/380V 1.5KW 6.1M (20FT) Gearbox motor drive 55RPM 774000m3/h 800 6~13 60db 147kg
DS-5.5 6 220V/380V 1.5KW 5.5M (18FT) Gearbox motor drive 60RPM 732000m3/h 600 5~11 60db 143kg
DS-5.0 6 220V/380V 1.5KW 5.0M (16FT) Gearbox motor drive 65RPM 690000m3/h 450 5~9 60db 140kg
Fengxing series
(PMSM motor)
DX-7.3 6 220V 1.5KW 7.3M (24FT)  brushless direct drive 50RPM 888000m3/h 1200 7~18 38db 106kg
DX-6.7 6 220V 1.2KW 6.7M (22FT)  brushless direct drive 55RPM 822000m3/h 1000 6~15 38db 100kg
DX-6.1 6 220V 1.0KW 6.1M (20FT)  brushless direct drive 60RPM 774000m3/h 800 6~13 38db 94kg
DX-5.5 6 220V 0.75KW 5.5M (18FT)  brushless direct drive 65RPM 732000m3/h 600 5~11 38db 72kg
DX-5.0 6 220V 0.7KW 5.0M (16FT)  brushless direct drive 68RPM 690000m3/h 450 5~9 38db 68kg
DX-4.2 5 220V 0.6KW 4.2M (14FT)  brushless direct drive 75RPM 636000m3/h 300 4~7 38db 64kg
DX-3.6 5 220V 0.3KW 3.6M (12FT)  brushless direct drive 90RPM 393600m3/h 250 4~6 45db 42kg
DX-3.0 5 220V 0.2KW 3.0M (10FT)  brushless direct drive 100RPM 331800m3/h 200 4~5 45db 38kg
DX-2.4 5 220V 0.15KW 2.4M (8FT)  brushless direct drive 100RPM 273000m3/h 200 4~5 45db 34kg




Key component configuration
★drive device
•Fengshen series fan adopts Taiwan/German gearbox motor
•Fengxing series adopts the industry's first non carbon brush, large torque, DC drive motor, replacing the traditional motor speed reducer, realizing high integration, improving reliability and transmission efficiency
★control device
•Fengshen series fan adopts Taiwan / Germany brand inverter stepless speed change (optional explosion-proof controller) to configure circuit breaker overcurrent overload protection, cooling fan and other components
•Fengxing series fan adopts a special brush free controller
★fan blade
•The material of the fan blade adopts magnesium aluminum alloy T6 treatment, corrosion resistance, high strength, high toughness
•Advanced fluid simulation software CFD simulation and wind tunnel test, in line with aerodynamic anti fatigue;
•With the function of delay start, the load and impact of the motor are greatly reduced, and the service life is longer

★Structure components
•The structural parts are formed by Q235B laser, bending the stiffener structure, and the thickest part is 8mm.
•Alloy steel high strength bolts and anti-skid nuts are used for the bolts.
•Steel wire rope and turnbuckle tension structure to stabilize the fan against falling
• The integrated chassis can prevent the risk of fracture, the coupling anti falling structure can avoid screw defects, the chassis can be dropped, the hole arrangement design of plywood structure can prevent sliding, the adjustable structure is suitable for any installation conditions, and the arc-shaped adjustable waist hole can be adjusted to ensure the plane level of blade chassis


Large Industrial Ceiling Fan with 7.3m Diameter for Auto Workshop Ventilaition



  Large Industrial Ceiling Fan with 7.3m Diameter for Auto Workshop Ventilaition
DAISNE Workshop overview
Large Industrial Ceiling Fan with 7.3m Diameter for Auto Workshop Ventilaition

Large Industrial Ceiling Fan with 7.3m Diameter for Auto Workshop Ventilaition
Large Industrial Ceiling Fan with 7.3m Diameter for Auto Workshop Ventilaition



Typical customer applications

Large Industrial Ceiling Fan with 7.3m Diameter for Auto Workshop Ventilaition


Certificates of DAISEN CEILING FANS


Large Industrial Ceiling Fan with 7.3m Diameter for Auto Workshop Ventilaition

            FAQ
            Q:Are you a foreign trade company or a manufacturer ?
            A: Yes , we are a manufacturer, Our factory is specialized in HVLS Industrial Ceiling Fans, cooling fan ,Exhaust Industrial                        Fan and so on.
            Q:  Can you make my brand on products or provide OEM service?
            A:  Yes.We provide OEM service.We are the OEM supplier for some famous companies
            Q:  What's your minimum quantity for order (MOQ)?
            A:  1PCS
            Q: what's the delivery time?
            A:  It depends on the order quantity. Delivery time will be within 3days after receiving payment by TT.
            Q: What is your terms of payment ?
            A: Payment≤10000USD, 100% in advance. Payment≥10000USD, 30% T/T in advance , balance before shipment.
            Q:  How long is the warranty?
            A:  we offer 3 years warranty to guarantee the quality for global customers.
