Large Low Velocity Industrial Warehouse Ceiling Fans

Product Details

Place of Origin: China

Brand Name: daisen

Certification: RoHS, ISO, UL, CE, SGS

Model Number: DS

Payment & Shipping Terms

Minimum Order Quantity: 1PCS

Price: Negotiation

Packaging Details: Wooden

Delivery Time: 3 days

Payment Terms: L/C, T/T, Money Gram

Get Best Price
Contact Now
Specifications
Highlight:

Industrial Warehouse Ceiling Fans

,

1.5KW low velocity Warehouse Ceiling Fans

,

high volume low velocity fan

HS Code:
8414591000
Port:
Shenzhen, China
Transport Package:
Wooden
Certification:
RoHS, ISO, UL, CE, SGS
Specification:
Diameter 7.3 Meter
Trademark:
DS
Origin:
China
HS Code:
8414591000
Port:
Shenzhen, China
Transport Package:
Wooden
Certification:
RoHS, ISO, UL, CE, SGS
Specification:
Diameter 7.3 Meter
Trademark:
DS
Origin:
China
Description
Large Low Velocity Industrial Warehouse Ceiling Fans

Large Industrial Ceiling Fan with 7.3m Diameter for Workshop Ventilaition




Function of the fan:
1-ventilation

The fan improve air exchange in an entire space, it's perfect streamlined design can produces 2-3m/s speed three-dimensional wind, and makes you feel like enjoying the natural breeze system.It promotes the dispersion of smoke, moisture, carbon dioxide and poor air with high specific gravity.So as to improve the quality of working area, create healthy, dry and safe working environment, improve working efficiency.

2-convenience

It is convenience to be operated, control system adopts the latest poleless frequency converter control system.besides of convenience operation, the humanized operation interface also allows you enjoy the beauty of electronic and mechanic achieve the life.

3-Dehumidification

Because it can produce large air volume, effectively promote air circulation, so that the moisture is well dispersed, greatly reducing the probability of problems such as bedbugs, fungi and so on.
4)beautiful and durable
After complex surface treatment,the product can avoid the pain of period cleaning,the cost-performance ratio is the highest,the life of each fan can reach more than10 years.

4-energy saving

The rated power of the motor on the fan is 1.5KW,each fan can cover 1000 square meter working area,8 hours per day, is just 10 degree power energy consumption,compared to typical small fans and high power consumption air condition, large industrial ceiling fan can be called model of energy saving, can greatly reduce your operation cost.

Working principle :

Large ceiling fan is a series of products special developed for energy saving,working environment improvement. As we all know,refrigeration is not the only way to achieve the effect of cooling and comfort. The area of a fan could blow is determined by the diameter dimension of it, but has nothing to do with its speed.therefore, the industrial fan with large diameter and low speed combines all these characteristics .
After years deeply research and exploration,by integrating oversea advanced aeronautic technology,we Dai sen developed a kind of propeller blades with outstanding performance,it conforms continuous and silent breeze by slowly rotation.The large volume of airflow generated by its unique and high efficient blades push down,thus a nearly perfect propeller exhaust is constructed.
It pushes large volume of airflow to the ground,and constructed certain high level airflow moving horizontally,thus generates a overall air circulation.The advantage is overall ground coverage and three-dimensional circulation of air.
The speed of wind generated by"Large industrial ceiling fan"is about 1-3m/s,completely calculated according to the best feeling of cooling when the airflow pass through human skin.too strong airflow makes people feel irritable,a sense of being blown directly,too high speed of airflow also makes people dizzy,only the through the evaporation of skin combines of breeze speed,can beautifies people's feeling of cooling.


DAISEN PRODUCT CATALOG AS BELOW:

Series Model Numbers of the blades Voltage Power Diameter Drive mode Max speed Max air volume Max coverage area(m²) Fit for installation height(m) Noise level Net weight
Fengshen series
(Gearbox motor)
DS-7.3 6 220V/380V 1.5KW 7.3M (24FT) Gearbox motor drive 50RPM 888000m3/h 1200 7~18 60db 156kg
DS-6.7 6 220V/380V 1.5KW 6.7M (22FT) Gearbox motor drive 52RPM 822000m3/h 1000 6~15 60db 152kg
DS-6.1 6 220V/380V 1.5KW 6.1M (20FT) Gearbox motor drive 55RPM 774000m3/h 800 6~13 60db 147kg
DS-5.5 6 220V/380V 1.5KW 5.5M (18FT) Gearbox motor drive 60RPM 732000m3/h 600 5~11 60db 143kg
DS-5.0 6 220V/380V 1.5KW 5.0M (16FT) Gearbox motor drive 65RPM 690000m3/h 450 5~9 60db 140kg
Fengxing series
(PMSM motor)
DX-7.3 6 220V 1.5KW 7.3M (24FT)  brushless direct drive 50RPM 888000m3/h 1200 7~18 38db 106kg
DX-6.7 6 220V 1.2KW 6.7M (22FT)  brushless direct drive 55RPM 822000m3/h 1000 6~15 38db 100kg
DX-6.1 6 220V 1.0KW 6.1M (20FT)  brushless direct drive 60RPM 774000m3/h 800 6~13 38db 94kg
DX-5.5 6 220V 0.75KW 5.5M (18FT)  brushless direct drive 65RPM 732000m3/h 600 5~11 38db 72kg
DX-5.0 6 220V 0.7KW 5.0M (16FT)  brushless direct drive 68RPM 690000m3/h 450 5~9 38db 68kg
DX-4.2 5 220V 0.6KW 4.2M (14FT)  brushless direct drive 75RPM 636000m3/h 300 4~7 38db 64kg
DX-3.6 5 220V 0.3KW 3.6M (12FT)  brushless direct drive 90RPM 393600m3/h 250 4~6 45db 42kg
DX-3.0 5 220V 0.2KW 3.0M (10FT)  brushless direct drive 100RPM 331800m3/h 200 4~5 45db 38kg
DX-2.4 5 220V 0.15KW 2.4M (8FT)  brushless direct drive 100RPM 273000m3/h 200 4~5 45db 34kg
DS SERIES FANS


The chassis is tempered after precision hot forging to ensure the strength and toughness; after CNC processing, dynamic balance detections carried out to ensure the best

stability.



DAISEN's unique design of row holes on the installation plate, can prevent the

sliding of the installation plate, we also have installation kits for concrete and

and circular tube structure as well as any other kinds of structure.







Blader connector,After the precision cold drawing process, the heat

treatment is carried out. After the arc surface is processed, it ensures no gap fit with the blade, and has the largest contact surface with the blade to ensure uniform force.





The galvanized structure steel universal joint,can adjusts the horizontal and vertical direction to ensure the fan in vertical status. So that ensuring the balance of the fan in the process of rotation, and reducing the torsion transmission from the fan to the building.





coupling. ,40Cr alloy coupling, CNC machining to ensure transmission stability





8mm diameter steel rope wrapped with anti-rust plastic,reinforced rope clip,with anti-skip turnbuckle screw tension and adjust the horizon of the fan, prevents shaking of the fan, absorb the vibration energy.





The blade is made of aeronautic Al-mg I alloy material that passed T6 heat treatment process ,it has high strength,high durability



Select high strength screws greater than 8.8 grade according to different

connecting parts of the fan,anti-loosing self-locking screws and and anti-slip nuts ,together with anti-loosing thread glue ,anti-falling connection rings , anti-falling connection parts of the blade.




Hvls Industrial Ceiling Fan for Workshop Cooling and Ventilation
DX SERIES FANS



Permanent magnet synchronous motor (PMSM) ,brushless and directdrive, no gearbox, no transmission lubricating oil, permanent maintenance free,220V 1 0.7KW high efficiency, energy saving, quiet and efficient



DAISEN's unique design of row holes on the installation plate, can prevent the

sliding of the installation plate, we also have installation kits for concrete and and circular tube structure as well as any other kinds of structure.



E9



Poleless speed control box, German Weitu structure design, speed control display panel, France Schneider airs witch over-current overload protection, control box cooling fan assembly, fan status indicator lamp,fan status detection, accidental automatic power cut-off, anti-electromagnetic interference



The blade is made of aeronautic Al-mgalloy material that passed T6 heat treatment process,it has high strength,high durability



Air is gathered at the end of streamlined blades to form eddy current, to prevent cavity whistling, to comply with the principle of fluid mechanics and to generate downward pressure to counteract the reaction force of blade floating up, so as to maintain the stability of blades



8mm diameter steel rope wrapped with anti-rust plastic,reinforced rope clip,with anti-skip turnbuckle screw tension and adjust the horizon of the fan, prevents shaking of the fan, absorb the vibration energy.




Hvls Industrial Ceiling Fan for Workshop Cooling and Ventilation



Key component configuration
★drive device
•Fengshen series fan adopts Taiwan/German gearbox motor
•Fengxing series adopts the industry's first non carbon brush, large torque, DC drive motor, replacing the traditional motor speed reducer, realizing high integration, improving reliability and transmission efficiency
★control device
•Fengshen series fan adopts Taiwan / Germany brand inverter stepless speed change (optional explosion-proof controller) to configure circuit breaker overcurrent overload protection, cooling fan and other components
•Fengxing series fan adopts a special brush free controller
★fan blade
•The material of the fan blade adopts magnesium aluminum alloy T6 treatment, corrosion resistance, high strength, high toughness
•Advanced fluid simulation software CFD simulation and wind tunnel test, in line with aerodynamic anti fatigue;
•With the function of delay start, the load and impact of the motor are greatly reduced, and the service life is longer

★Structure components
•The structural parts are formed by Q235B laser, bending the stiffener structure, and the thickest part is 8mm.
•Alloy steel high strength bolts and anti-skid nuts are used for the bolts.
•Steel wire rope and turnbuckle tension structure to stabilize the fan against falling
• The integrated chassis can prevent the risk of fracture, the coupling anti falling structure can avoid screw defects, the chassis can be dropped, the hole arrangement design of plywood structure can prevent sliding, the adjustable structure is suitable for any installation conditions, and the arc-shaped adjustable waist hole can be adjusted to ensure the plane level of blade chassis


Large Industrial Ceiling Fan with 7.3m Diameter for Workshop Ventilaition


Comparison of three refrigeration methods in 1000 square meter plant
Refrigeration mode Quantity Power/unit Tall power General comparison
Central air conditioner 1 80KW 80KW The walls and doors and windows of the plant are required to be insulated. The cost of one-time investment of the equipment is high, and the maintenance cost of replacing the filter element and adding refrigerant is high
Traditional industrial fan 40 0.3KW 12KW The installation of traditional wall fans is limited by walls and columns. The power lines of floor fans are scattered, which has potential safety hazards. It is not safe for the hair of staff members to be mixed into the fan blades, which occupies a small space and covers a short service life
7.3M large industrial ceiling fan 1 1.5KW 1.5KW Large coverage area, long service life, low maintenance cost, installation does not occupy the workshop space, safety and environmental protection

The energy consumption of large industrial ceiling fan is about 1 / 50 of that of central air conditioner and 1 / 10 of that of traditional industrial wall fan


***Suitable places of installation: Any high enough structure of factory,sport center,logistic place,car repair workshops,supermarket, airport,package workshop,animal breading industry,any kinds of hall,as well as fitness center etc.
***Height of installation: "Fengshen" series products for 6 meters to 20 meters height.
                      "Fengxing" series products for 3 meters to 6 meters height.
***Solutions for the three main kinds of installation structures as above shown pictures.
  Large Industrial Ceiling Fan with 7.3m Diameter for Workshop Ventilaition
DAISNE Workshop overview
Large Industrial Ceiling Fan with 7.3m Diameter for Workshop Ventilaition

Large Industrial Ceiling Fan with 7.3m Diameter for Workshop Ventilaition
Large Industrial Ceiling Fan with 7.3m Diameter for Workshop Ventilaition

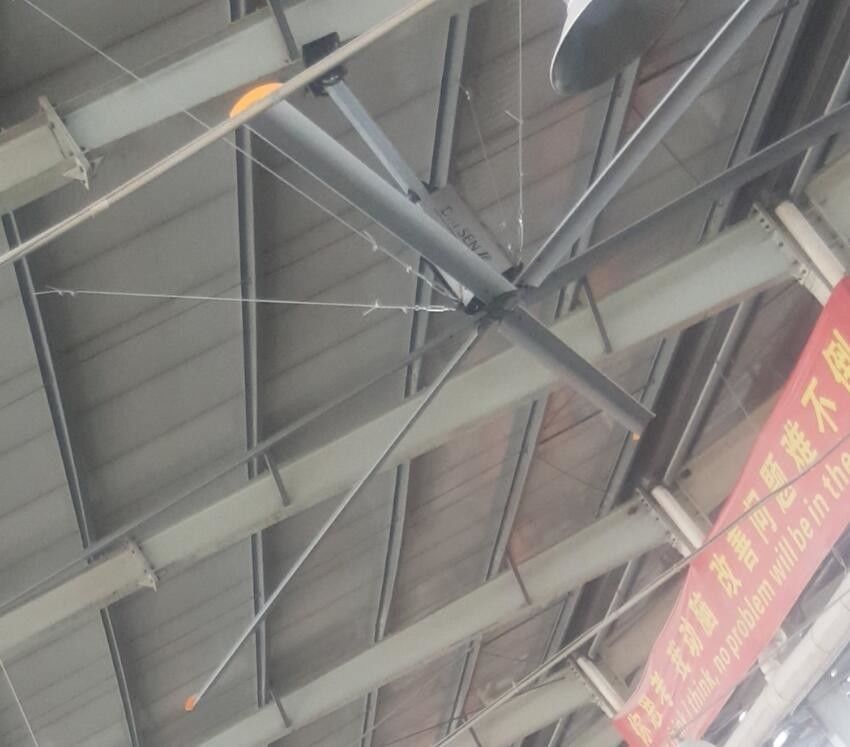

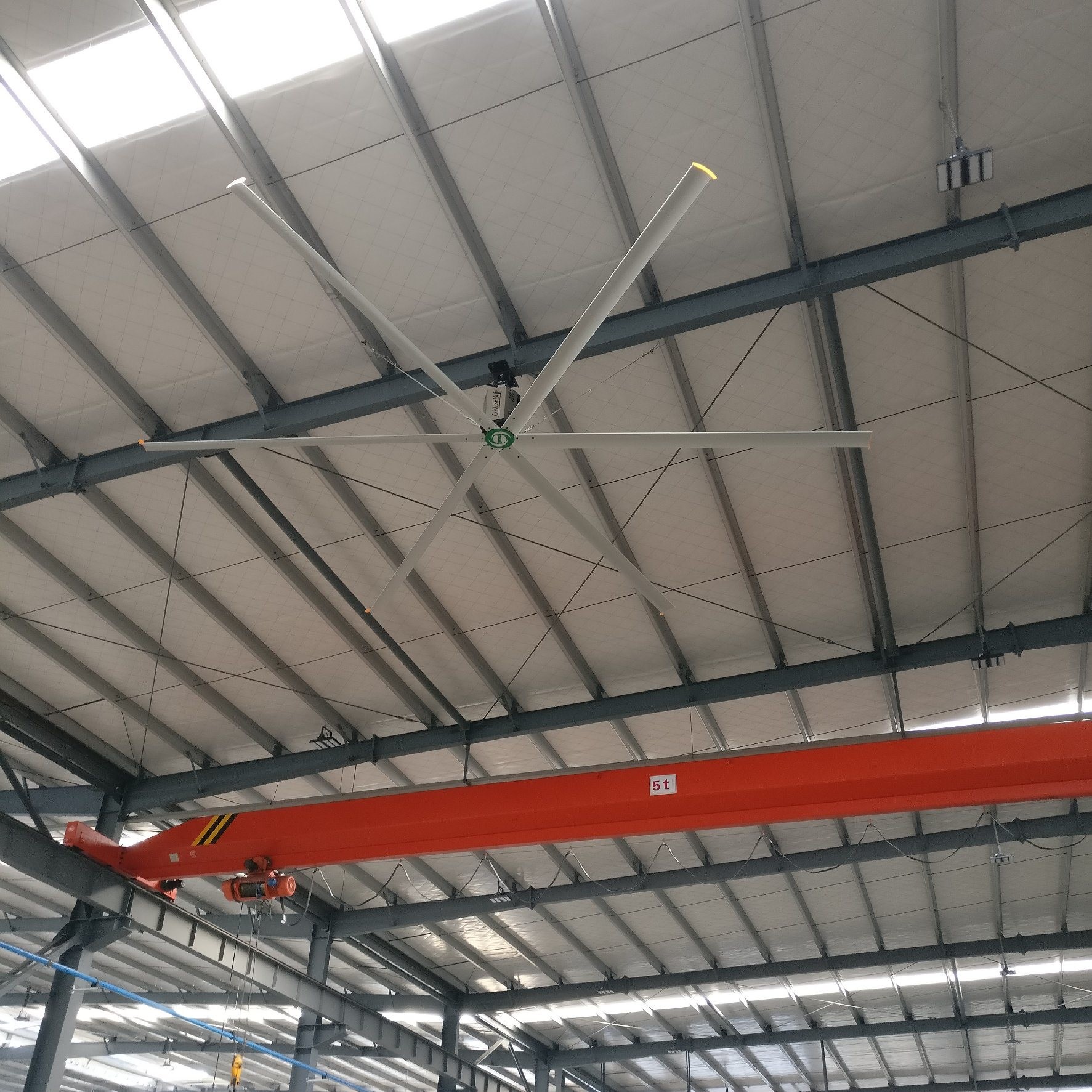

Typical customer applications

Large Industrial Ceiling Fan with 7.3m Diameter for Workshop Ventilaition


Certificates of DAISEN CEILING FANS


Large Industrial Ceiling Fan with 7.3m Diameter for Workshop Ventilaition

            FAQ
            Q:Are you a foreign trade company or a manufacturer ?
            A: Yes , we are a manufacturer, Our factory is specialized in HVLS Industrial Ceiling Fans, cooling fan ,Exhaust Industrial                        Fan and so on.
            Q:  Can you make my brand on products or provide OEM service?
            A:  Yes.We provide OEM service.We are the OEM supplier for some famous companies
            Q:  What's your minimum quantity for order (MOQ)?
            A:  1PCS
            Q: what's the delivery time?
            A:  It depends on the order quantity. Delivery time will be within 3days after receiving payment by TT.
            Q: What is your terms of payment ?
            A: Payment≤10000USD, 100% in advance. Payment≥10000USD, 30% T/T in advance , balance before shipment.
            Q:  How long is the warranty?
            A:  we offer 3 years warranty to guarantee the quality for global customers.
