16800 CMM 1.5 kW high volume low speed ceiling fans residential

Place of Origin China
Brand Name daisen
Certification RoHS, ISO, UL, CE, SGS
Model Number DS
Minimum Order Quantity 1PCS
Price Negotiation
Packaging Details Wooden
Delivery Time 3 days
Payment Terms L/C, T/T, Money Gram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
HS Code 8414591000 Port Guangzhou, China
Transport Package Wooden Package Electric Current Type AC
Specification Diameter 7.3 Meters Trademark DS
Origin China
High Light

1.5 kW high volume low speed fan

,

16800 CMM high volume low speed fan

,

16800 CMM high volume low velocity fans

Leave a Message
Product Description



Product description


The wind blown from large industrial ceiling fan feels like natural breeze system,the wind speed is just the best cool feeling of human skin. Personnel can feel the temperature difference 5-8 degree, provide personnel a suitable working environment in hot summer,therefore improve the production efficiency.
Function of the fan:
1)ventilation
The fan improve air exchange in an entire space, it's perfect streamlined design can produces 2-3m/s speed three-dimensional wind, and makes you feel like enjoying the natural breeze system.It promotes the dispersion of smoke, moisture, carbon dioxide and poor air with high specific gravity.So as to improve the quality of working area, create healthy, dry and safe working environment, improve working efficiency.
2)convenience
It is convenience to be operated, control system adopts the latest poleless frequency converter control system.besides of convenience operation, the humanized operation interface also allows you enjoy the beauty of electronic and mechanic achieve the life.

  1. Dehumidification

Because it can produce large air volume, effectively promote air circulation, so that the moisture is well dispersed, greatly reducing the probability of problems such as bedbugs, fungi and so on.
4)beautiful and durable
After complex surface treatment,the product can avoid the pain of period cleaning,the cost-performance ratio is the highest,the life of each fan can reach more than10 years.

  1. energy saving

The rated power of the motor on the fan is 1.5KW,each fan can cover 1000 square meter working area,8 hours per day, is just 10 degree power energy consumption,compared to typical small fans and high power consumption air condition, large industrial ceiling fan can be called model of energy saving, can greatly reduce your operation cost.




"DAISEN"industrial ceiling fan technical standard
General
Model Number ----------------------------------------------------------DS-7.3
Operation mode ---------------------------------------------------------Forward Run
Diameter ------------------------------------------------------------------24 FT / 7.3 Meters
Blade Style -------------------------------------------------------------  Airfoil/OP
Number of Blades   -------------------------------------------------------  6
Nominal Horsepower ------------------------------------------------  2.0 HP / 1.5 kW
Hanging Weight (average)  --------------------------------------  156Kg
Shipping Weight (Including control box, Mounting Hardware) (average)   186 Kg
Maximum dB-------------------------------------------------------------------60
(*dB Values Were Obtained by Testing. Specific Applications/Installation values may vary.


Performance (at max speed)
Displacement (fwd, blowing down)  ---------- 16800 CMM( m3/min)
Maximum Speed-----------------------------------------------------------  50 RPM
Power Usage @ Max. Speed ----------------------- 1.5 kW
Efficiency @ 100% Max. Speed  ------------------------------ 8.53CMM/Watt
Maximum Effective Area(varies according to different installation height, as well as below obstacles)----600-1400 m2
Typical Industrial Spacing --------------------------------------------12-40 Meter

Mounting Hardware
Standard Mount---------------------------------
Universal I-Beam Clamp w/ Swivel Joint and 250mm Drop
Glulam Mount (Optional) Brackets w/ Swivel Joint &200MM Drop

Additional Drop Extensions (Puyou)--------- Up to 2m in 20cm Increments
Motor
gear motor  ------------------------------------------------------- CV40-30-1500
bearing structure ------------------------------------------------------- SKF heavy load bearing
design life -------------------------------------------------------  12 years
HP  -------------------------------------------------------   2 / 1.5 kW
Ambient Operating Temperature-------------   -20 C° to +40C°
Insulation Class -------------------------------------- H
Protect Class------------------------------------------IP 55
Work Contition------------------------------------------- continuous S 1
Service Factor---------------------------------------- 0.8/0.78
Gearbox
Type -------------------------------------------------------- 2-Stage Helical
Service Interval-------------------------------------------synthetic gear lubricating grease,maintenance free

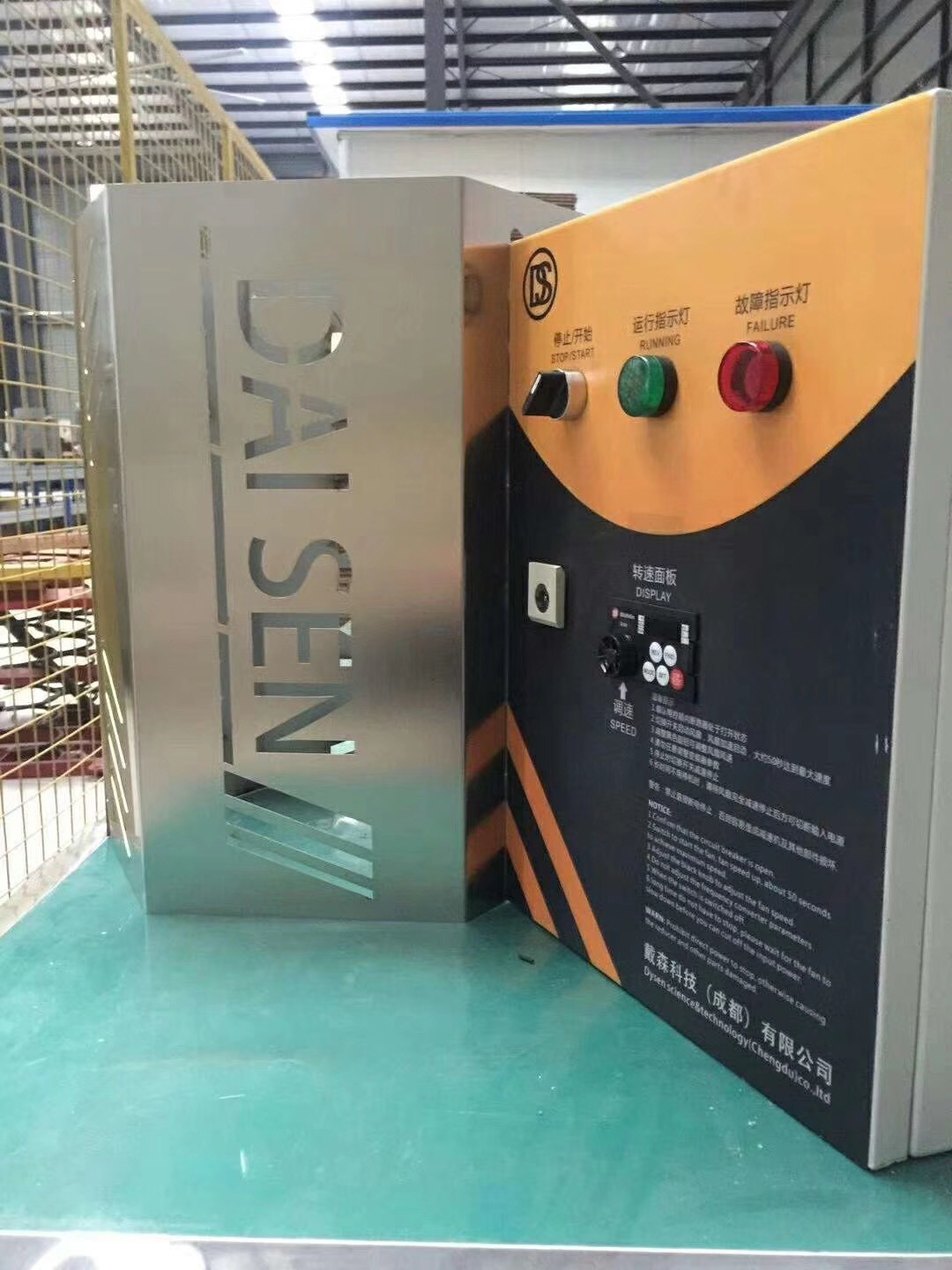

Motor Control Panel (MCP)
Standard Power and Max Amp Draw-------------------- --220V AC 2Ø (16A)   OR  380 AC 3Ø (20A)
power indication light-------------------------------------------------------fault/running(red/green)
RF Line Filter-------------------------------------RF
Air Breaker--------------------------------------- Schneider 220V1Ø 16A  380V3Ø16A
VFD Motor Drive Cable -----------------RVV1*
Frequency Converter-------------------------
poleless frequency controller,(1.5KW)|380V/220V
Safety Components
turnbuckle screw
mechanical anti-dropping structure
plastic coated steel cable
Blade Retainer Links (6), Safety Cable, Guy Wires (Ceiling mount only)
high strength screws and anti-skid nuts of 8.8,10.9, 12.9 grade for differnt structures.
Warranty
one year part warranty on Motor,blade, Gearbox & Control Panel.

Product model
  Model Voltage Power Diameter Max speed Volume Noise grade Weight
Fengshen seires DS-7.3 220V/380V 1.5KW 7.3M 50 16800m³/min 60 156kg
DS-6.6 220V/380V 1.5KW 6.6M 55 12862m³/min 60 151kg
DS-6.0 220V/380V 1.5KW 6.0M 60 12261m³/min 60 148g
DS-5.4 220V/380V 1.5KW 5.4M 65 11963m³/min 60 144kg
Fengxing series DS-4.8 220V 0.75KW 4.8M 75 10675m³/min 40 60kg
DS-4.2 220V 0.52KW 4.2M 85 5213m³/min 40 56kg
DS-3.6 220V 0.40KW 3.6M 95 3326m³/min 40 52kg
DS-3.0 220V 0.35KW 3.0M 120 2673m³/min 40 48kg
Key component configuration


drive device

Fengshen series fan adopts Taiwan/German gearbox motor
Fengxing series adopts the industry's first non carbon brush, large torque, DC drive motor, replacing the traditional motor speed reducer, realizing high integration, improving reliability and transmission efficiency
control device
Fengshen series fan adopts Taiwan / Germany brand inverter stepless speed change (optional explosion-proof controller) to configure circuit breaker overcurrent overload protection, cooling fan and other components

Fengxing series fan adopts a special brush free controller
fan blade

The material of the fan blade adopts magnesium aluminum alloy T6 treatment, corrosion resistance, high strength, high toughness
Advanced fluid simulation software CFD simulation and wind tunnel test, in line with aerodynamic anti fatigue;
With the function of delay start, the load and impact of the motor are greatly reduced, and the service life is longer

Hvls Industrial Big Ventilation Fan with High Volume of Air Wind

Structure components

The structural parts are formed by Q235B laser, bending the stiffener structure, and the thickest part is 8mm.
Alloy steel high strength bolts and anti-skid nuts are used for the bolts.
Steel wire rope and turnbuckle tension structure to stabilize the fan against falling
The integrated chassis can prevent the risk of fracture, the coupling anti falling structure can avoid screw defects, the chassis can be dropped, the hole arrangement design of plywood structure can prevent sliding, the adjustable structure is suitable for any installation conditions, and the arc-shaped adjustable waist hole can be adjusted to ensure the plane level of blade chassis

Hvls Industrial Big Ventilation Fan with High Volume of Air Wind

Hvls Industrial Big Ventilation Fan with High Volume of Air Wind
Comparison of three refrigeration methods in 1000 square meter plant

Refrigeration mode Quantity Power/unit Tall power General comparison
Central air conditioner 1 80KW 80KW The walls and doors and windows of the plant are required to be insulated. The cost of one-time investment of the equipment is high, and the maintenance cost of replacing the filter element and adding refrigerant is high
Traditional industrial fan 40 0.3KW 12KW The installation of traditional wall fans is limited by walls and columns. The power lines of floor fans are scattered, which has potential safety hazards. It is not safe for the hair of staff members to be mixed into the fan blades, which occupies a small space and covers a short service life
7.3M large industrial ceiling fan 1 1.5KW 1.5KW Large coverage area, long service life, low maintenance cost, installation does not occupy the workshop space, safety and environmental protection


The energy consumption of large industrial ceiling fan is about 1 / 50 of that of central air conditioner and 1 / 10 of that of traditional industrial wall fan

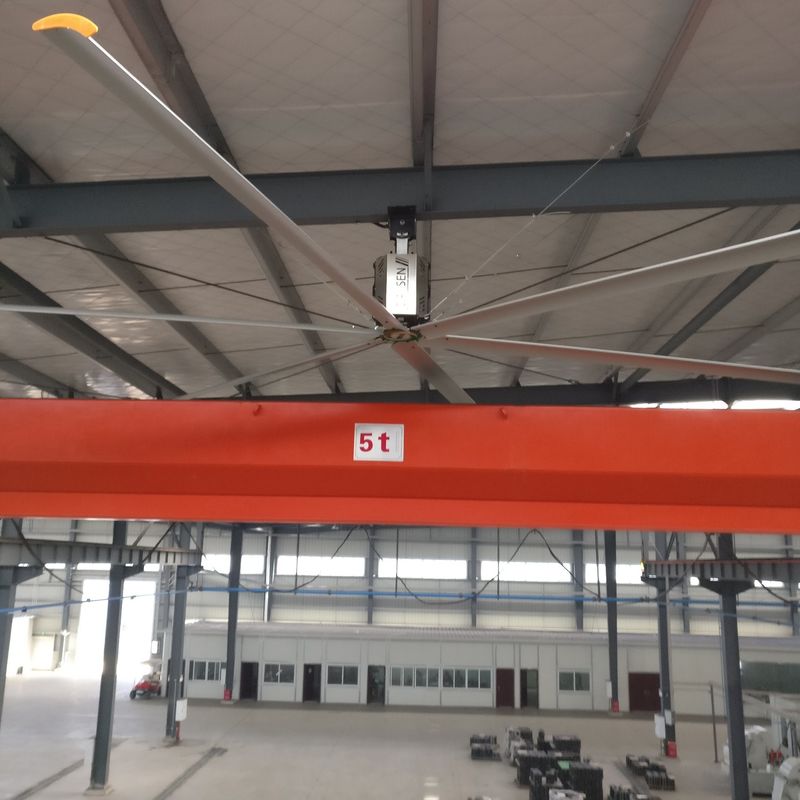

***Suitable places of installation: Any high enough structure of factory,sport center,logistic place,car repair workshops,supermarket, airport,package workshop,animal breading industry,any kinds of hall,as well as fitness center etc.
***Height of installation: "Fengshen" series products for 6 meters to 20 meters height.
                      "Fengxing" series products for 3 meters to 6 meters height.
***Solutions for the three main kinds of installation structures as above shown pictures.

There are various forms of building structures. We provide you with the installation methods of three common structures (right figure):
Hvls Industrial Big Ventilation Fan with High Volume of Air Wind  Hvls Industrial Big Ventilation Fan with High Volume of Air WindHvls Industrial Big Ventilation Fan with High Volume of Air Wind


Air flow of the fan


Hvls Industrial Big Ventilation Fan with High Volume of Air WindHvls Industrial Big Ventilation Fan with High Volume of Air Wind


Typical customer applications
Hvls Industrial Big Ventilation Fan with High Volume of Air Wind
