Product Details
Place of Origin: China
Brand Name: daisen
Certification: RoHS, ISO, UL, CE, SGS
Model Number: DS
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Wooden
Delivery Time: 3 days
Payment Terms: L/C, T/T, Money Gram
Model NO.: |
DS-7.3 |
HS Code: |
841459100 |
Port: |
Guangzhou, China |
Transport Package: |
Wooden Package |
Certification: |
ISO |
Specification: |
Diameter 7.3 Meters |
Trademark: |
DS |
Origin: |
China |
Model NO.: |
DS-7.3 |
HS Code: |
841459100 |
Port: |
Guangzhou, China |
Transport Package: |
Wooden Package |
Certification: |
ISO |
Specification: |
Diameter 7.3 Meters |
Trademark: |
DS |
Origin: |
China |

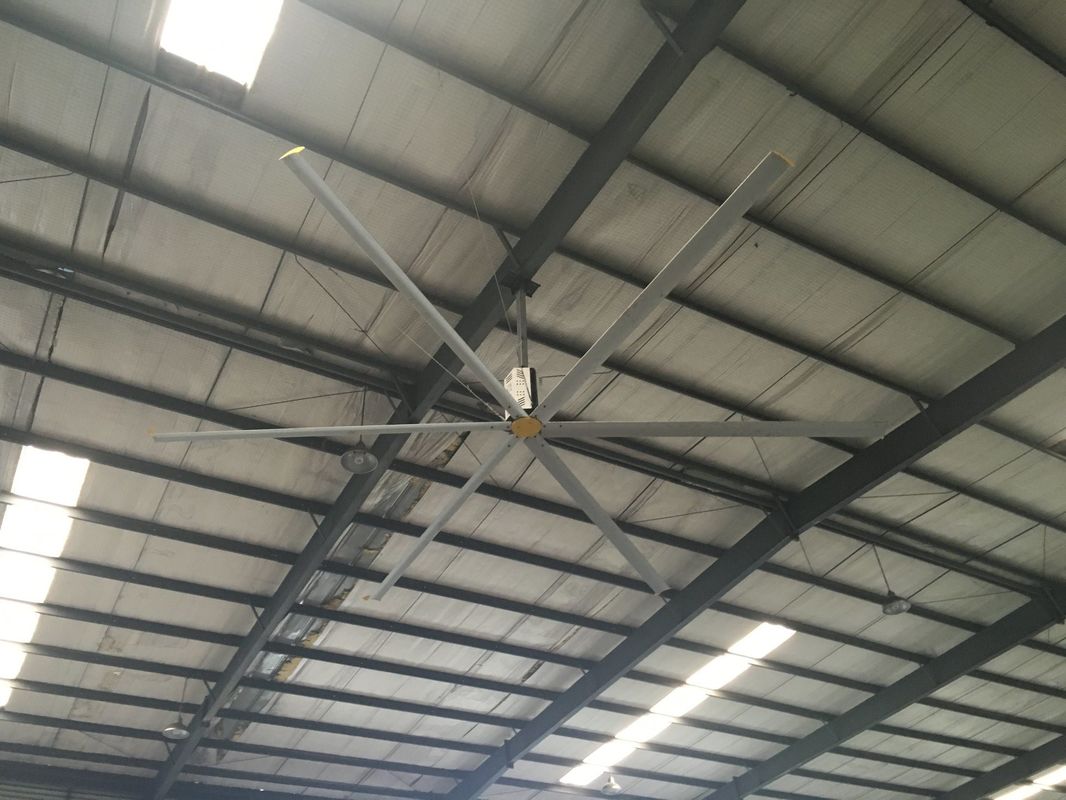

"DAISEN"industrial ceiling fan technical standard
General
Model Number ----------------------------------------------------------DS-7.3
Operation mode ---------------------------------------------------------Forward Run
Diameter ------------------------------------------------------------------24 FT / 7.3 Meters
Blade Style ------------------------------------------------------------- Airfoil/OP
Number of Blades ------------------------------------------------------- 6
Nominal Horsepower ------------------------------------------------ 2.0 HP / 1.5 kW
Hanging Weight (average) -------------------------------------- 156Kg
Shipping Weight (Including control box, Mounting Hardware) (average) 186 Kg
Maximum dB-------------------------------------------------------------------60
(*dB Values Were Obtained by Testing. Specific Applications/Installation values may vary.
Technical requirements for key components
1, Blade: the blade of the fan is designed based on aerodynamics technology. It's extrusion formed and made of AI-Mg alloy No.6061 metal material.and passed T6 heat treatment. The surface of the blade is also passed Anti-corrosive treatment of abrasive oxidation. Each piece of bale includes three reinforced tendons and two isolation reinforced cavity, wide(W) 182mm, Height(H) 23mm,the thinnest part is 2mm, and the thickest part of connection area is 5mm( it's shape and simulation will be shown in coming pages ) ,the strength of 6061 T6 heat treated AI-Mg alloy material is much higher than 50XX series AI-Mg alloy material in our industry. Below table shows you mechanical properties comparison data(test report attached).
(type of Aluminum material | (25°C MPa) Tensile Strength |
(25°C MPa) Yield strength |
500kg 10mm ball Hardness |
1.6mm(1/16in) Extension rate |
5052-H112 | 175 | 195 | 60 | 12 |
5083-H112 | 180 | 211 | 65 | 14 |
6061-T651 | 290 | 240 | 95 | 12 |
1, Chassis structure; integrative chassis design compared to other brands has stronger strength.it resolves the influence of instantaneous impact, it is machined via hot forging,laser cutting,CNC machining as well as Anti-corrosive treatment.
2 , motor,customized for large industrial ceiling fans. Its inner bearing is SKF brand imported from Sweden,the noise value of the whole equipment is less than 60dB,Super-high strength gear with input stage, 2 module, output stage, 3 module, large module and fine grinding process, 40mm strengthened trapezoidal axle outlet structure, SKF enlarged oil seal from Sweden, high-grade synthetic lubricant in British Roadster is lifelong oil-free and maintenance-free, and the motor adopts German H-class insulation grade.
3, Control system: Poleless frequency conversion control system uses Taiwan Shilin custom frequency converter (with industry standard certification), the circuit board interior adopts dust-proof and moisture-proof treatment, built-in Schneider air circuit breaker, overload and leakage protection, accidental automatic power failure and alarm output, alarm code intuitive detection of circuit failure, network RS485 communication can be used. Access to Industrial 4.0 Network, Anti-EMI, Dust and Waterproof IP66 Protection Level.
4, Main frame: Q345B high strength structural steel is treated by laser - bending - full welding - plastic spraying and rust prevention. The shield adopts stainless steel material heat dissipation guide hole design to prevent motor from overheating, the upper part adopts row hole design (waist hole design does not have anti-skid function) adjustable installation, the lower part adopts transverse longitudinal two-way adjustable horizontal universal joint (only transverse one-way adjustment can not fully adjust the level in the industry), and the lower part is coupling. Structural design of interference and anti-dropping device
5. Safety components: all connecting bolts are high strength bolts greater than 8.8 grade, high strength anti-skid nuts, anti-loosening thread glue, anti-loosening turnbuckle screw tension stable fan, part of the structure uses alloy steel bolts with high strength fastening thread glue, 4 pieces of 8 mm anti-rust plastic wrapped wire rope cable,plus anti-falling ring installed.
Performance (at max speed)
Displacement (fwd, blowing down) ---------- 14800 CMM( m3/min)
Maximum Speed----------------------------------------------------------- 50 RPM
Power Usage @ Max. Speed ----------------------- 1.5 kW
Efficiency @ 100% Max. Speed ------------------------------ 8.53CMM/Watt
Maximum Effective Area(varies according to different installation height, as well as below obstacles)----600-1400 m2
Typical Industrial Spacing --------------------------------------------12-40 Meter
Mounting Hardware
Standard Mount---------------------------------
Universal I-Beam Clamp w/ Swivel Joint and 250mm Drop
Glulam Mount (Optional) Brackets w/ Swivel Joint &200MM Drop
Additional Drop Extensions (Puyou)--------- Up to 2m in 20cm Increments
Motor
gear motor ------------------------------------------------------- CV40-30-1500
bearing structure ------------------------------------------------------- SKF heavy load bearing
design life ------------------------------------------------------- 12 years
HP ------------------------------------------------------- 2 / 1.5 kW
Ambient Operating Temperature------------- -20 C° to +40C°
Insulation Class -------------------------------------- H
Protect Class------------------------------------------IP 55
Work Contition------------------------------------------- continuous S 1
Service Factor---------------------------------------- 0.8/0.78
Gearbox
Type -------------------------------------------------------- 2-Stage Helical
Service Interval-------------------------------------------synthetic gear lubricating grease,maintenance free
Motor Control Panel (MCP)
Standard Power and Max Amp Draw-------------------- --220V AC 2Ø (16A) OR 380 AC 3Ø (20A)
power indication light-------------------------------------------------------fault/running(red/green)
RF Line Filter-------------------------------------RF
Air Breaker--------------------------------------- Schneider 220V1Ø 16A 380V3Ø16A
VFD Motor Drive Cable -----------------RVV1*
Frequency Converter-------------------------
poleless frequency controller,(1.5KW)|380V/220V
Safety Components
turnbuckle screw
mechanical anti-dropping structure
plastic coated steel cable
Blade Retainer Links (6), Safety Cable, Guy Wires (Ceiling mount only)
high strength screws and anti-skid nuts of 8.8,10.9, 12.9 grade for differnt structures.
Warranty
one year part warranty on Motor,blade, Gearbox & Control Panel.
Varies of industrial ceiling fan option as below.
Model votage(V) Power diameter Max speed Volume dB grade weight
Model | Voltage | Power | Diameter | Max Speed | Air Volume | Noise | weight |
DS-7.3 | 220V/380V | 1. 5KW | 7.3m | 50rpm | 792000m3/H | < 60db | 156kg |
DS-6.7 | 220V/380V | 1. 5KW | 7.3m | 52rpm | 660000m3/H | < 60db | 152kg |
DS-6.0 | 220V/380V | 1. 5KW | 6.0m | 55rpm | 580000m3/H | < 60db | 147kg |
DS-5.5 | 220V/380V | 1. 5KW | 5.5m | 60rpm | 465000m3/H | < 60db | 143kg |
DS-5.0 | 220V/380V | 1. 5KW | 5.0m | 65rpm | 356000m3/H | < 60db | 140kg |
DS-7.3 | 220V/380V | 1. 4KW | 7.3m | 50rpm | 792000m3/H | ≤40db | l14kg |
DX-6.T | 220V/380V | 1. 4KW | 6.7m | 52rpm | 660000m3/H | ≤40db | 110kg |
DX-6.0 | 220V/380V | 1. 2KW | 6.0m | 55rpm | 580000m3/H | ≤40db | 105kg |
DX-5.5 | 220V/380V | 1. 0KW | 5.5m | 60rpm | 465000m3/H | ≤30db | 98kg |
DX-5.0 | 220V/380V | 0.75KW | 5.0m | 65rpm | 356000m3/H | ≤30db | 72kg |
DX-4.2 | 220V/380V | 0.5KW | 4.2m | 80rpm | 260000m3/H | ≤30db | 60kg |
DX-3.6 | 220V/380V | 0.5KW | 3.6m | 100rpm | 180000m3/H | ≤30db | 56kg |
for more detail product information,please feel free to contact our oversea sales department.
