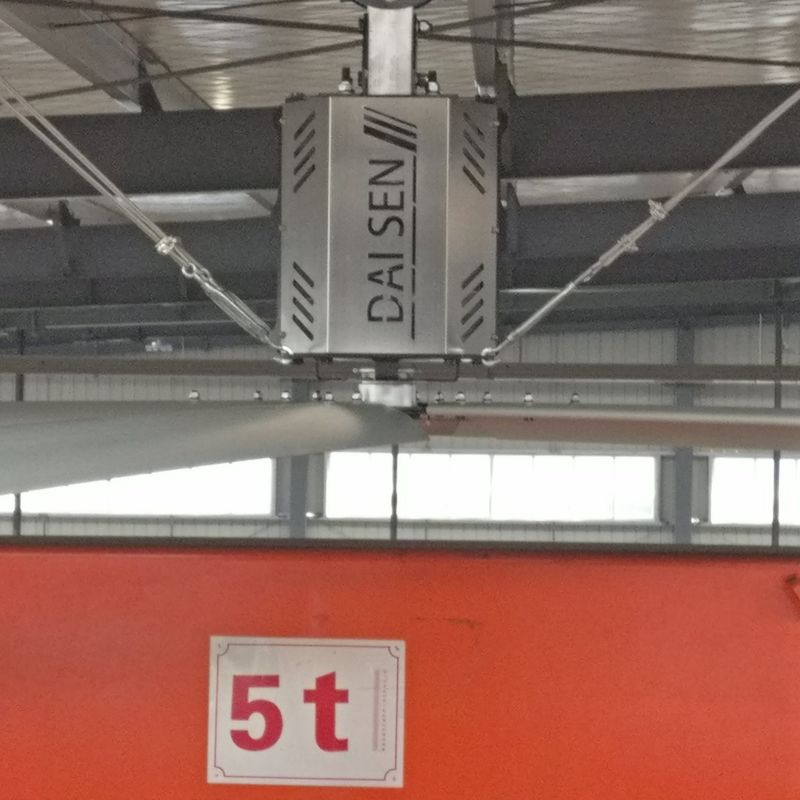

Cooling Factory Gearbox Ceiling Fan

Product Details

Place of Origin: China

Brand Name: daisen

Model Number: DS

Payment & Shipping Terms

Minimum Order Quantity: 1PCS

Price: Negotiation

Packaging Details: Wooden

Delivery Time: 3 days

Payment Terms: L/C, T/T, Money Gram

Get Best Price
Contact Now

Factory Gearbox Ceiling Fan


daisen Cooling Gearbox Ceiling Fan


Gearbox Commercial Warehouse Ceiling Fans

Model NO.:
HS Code:
Guangzhou, China
Transport Package:
Wooden Package
Diameter 7.3 Meters
Model NO.:
HS Code:
Guangzhou, China
Transport Package:
Wooden Package
Diameter 7.3 Meters
Cooling Factory Gearbox Ceiling Fan

Industrial Ceiling Fan for Factory Cooling Down

"DAISEN"industrial ceiling fan technical standard
Model Number ----------------------------------------------------------DS-7.3
Operation mode ---------------------------------------------------------Forward Run
Diameter ------------------------------------------------------------------24 FT / 7.3 Meters
Blade Style -------------------------------------------------------------  Airfoil/OP
Number of Blades   -------------------------------------------------------  6
Nominal Horsepower ------------------------------------------------  2.0 HP / 1.5 kW
Hanging Weight (average)  --------------------------------------  156Kg
Shipping Weight (Including control box, Mounting Hardware) (average)   186 Kg
Maximum dB-------------------------------------------------------------------60
(*dB Values Were Obtained by Testing. Specific Applications/Installation values may vary.

Technical requirements for key components
    1,  Blade: the blade of the fan is designed based on aerodynamics technology. It's extrusion formed and made of AI-Mg alloy No.6061 metal material.and passed T6 heat treatment. The surface of the blade is also passed Anti-corrosive treatment of abrasive oxidation. Each piece of bale includes three reinforced tendons and two isolation reinforced cavity, wide(W) 182mm, Height(H) 23mm,the thinnest part is 2mm, and the thickest part of connection area is 5mm( it's shape and simulation will be shown in coming pages ) ,the strength of 6061 T6 heat treated AI-Mg alloy material is much higher than 50XX series AI-Mg alloy material in our industry. Below table shows you mechanical properties comparison data(test report attached).

(type of Aluminum material (25°C MPa)
Tensile Strength
(25°C MPa)
Yield strength
500kg 10mm ball
Extension rate
5052-H112 175 195 60 12
5083-H112 180 211 65 14
6061-T651 290 240 95 12

Performance (at max speed)
Displacement (fwd, blowing down)  ---------- 14800 CMM( m3/min)
Maximum Speed-----------------------------------------------------------  50 RPM
Power Usage @ Max. Speed ----------------------- 1.5 kW
Efficiency @ 100% Max. Speed  ------------------------------ 8.53CMM/Watt
Maximum Effective Area(varies according to different installation height, as well as below obstacles)----600-1400 m2
Typical Industrial Spacing --------------------------------------------12-40 Meter

Mounting Hardware
Standard Mount---------------------------------
Universal I-Beam Clamp w/ Swivel Joint and 250mm Drop
Glulam Mount (Optional) Brackets w/ Swivel Joint &200MM Drop

Additional Drop Extensions (Puyou)--------- Up to 2m in 20cm Increments
gear motor  ------------------------------------------------------- CV40-30-1500
bearing structure ------------------------------------------------------- SKF heavy load bearing
design life -------------------------------------------------------  12 years
HP  -------------------------------------------------------   2 / 1.5 kW
Ambient Operating Temperature-------------   -20 C° to +40C°
Insulation Class -------------------------------------- H
Protect Class------------------------------------------IP 55
Work Contition------------------------------------------- continuous S 1
Service Factor---------------------------------------- 0.8/0.78
Type -------------------------------------------------------- 2-Stage Helical
Service Interval-------------------------------------------synthetic gear lubricating grease,maintenance free
Motor Control Panel (MCP)
Standard Power and Max Amp Draw-------------------- --220V AC 2Ø (16A)   OR  380 AC 3Ø (20A)
power indication light-------------------------------------------------------fault/running(red/green)
RF Line Filter-------------------------------------RF
Air Breaker--------------------------------------- Schneider 220V1Ø 16A  380V3Ø16A
VFD Motor Drive Cable -----------------RVV1*
Frequency Converter-------------------------
poleless frequency controller,(1.5KW)|380V/220V
Safety Components
turnbuckle screw
mechanical anti-dropping structure
plastic coated steel cable
Blade Retainer Links (6), Safety Cable, Guy Wires (Ceiling mount only)
high strength screws and anti-skid nuts of 8.8,10.9, 12.9 grade for differnt structures.
one year part warranty on Motor,blade, Gearbox & Control Panel.

Varies of industrial ceiling fan option as below.

    Model    votage(V)    Power      diameter  Max speed   Volume         dB grade  weight

Model Voltage Power Diameter Max Speed Air Volume Noise weight
DS-7.3 220V/380V 1. 5KW 7.3m 50rpm 792000m3/H < 60db 156kg
DS-6.7 220V/380V 1. 5KW 7.3m 52rpm 660000m3/H < 60db 152kg
DS-6.0 220V/380V 1. 5KW 6.0m 55rpm 580000m3/H < 60db 147kg
DS-5.5 220V/380V 1. 5KW 5.5m 60rpm 465000m3/H < 60db 143kg
DS-5.0 220V/380V 1. 5KW 5.0m 65rpm 356000m3/H < 60db 140kg
DS-7.3 220V/380V 1. 4KW 7.3m 50rpm 792000m3/H ≤40db l14kg
DX-6.T 220V/380V 1. 4KW 6.7m 52rpm 660000m3/H ≤40db 110kg
DX-6.0 220V/380V 1. 2KW 6.0m 55rpm 580000m3/H ≤40db 105kg
DX-5.5 220V/380V 1. 0KW 5.5m 60rpm 465000m3/H ≤30db 98kg
DX-5.0 220V/380V 0.75KW 5.0m 65rpm 356000m3/H ≤30db 72kg
DX-4.2 220V/380V 0.5KW 4.2m 80rpm 260000m3/H ≤30db 60kg
DX-3.6 220V/380V 0.5KW 3.6m 100rpm 180000m3/H ≤30db 56kg

for more detail product information,please feel free to contact our oversea sales department.
